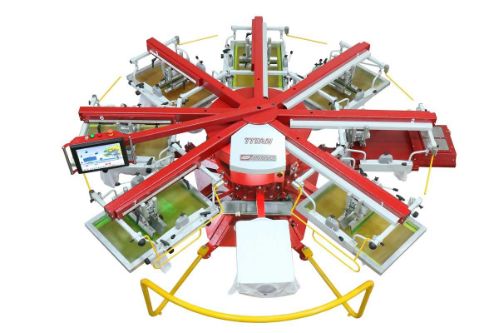

Anatol Titan M Automatic Press

The Anatol Titan M is engineered for screen printers who need the perfect balance of speed, expanded print capacity, and low air consumption without the footprint of a full industrial press. With a maximum print area of 16" x 18" (41cm x 46cm), the Titan M offers the versatility to handle everything from standard apparel to larger prints and specialty work.

Designed with Anatol’s advanced low-air pneumatic system, the Titan M uses dramatically fewer cylinders per head than competing automatics—resulting in lower operating costs, less maintenance, and the ability to run on a smaller air compressor. This makes it one of the most energy-efficient automatic presses in its class.

The Titan M is available in multiple configurations—from 6 stations / 4 colors up to 12 stations / 11 colors—giving growing shops the flexibility to choose the ideal footprint and output level for their workflow.

View more automatic screen printing presses

Catalog

Heads Up Feature

• On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
• It’s like getting two machines in one. For example, a 10 station 9 color machine can become a 10 station 8 color machine when
  you need two operators to load and unload and aren’t using the last head, allowing you to work faster.

Registration

• True three-point micro-registration of the screen (front-back, left-right, rotational movement) allowing for precise and quick adjustments
• Compatible with Anatol’s ARME pre-registration system, as well as many other common pre-registration systems available
  on the market

Control Interface

• Aries 2 OS: same industry-leading, intuitive operating system found on our top-of-the-line-VOLT presses
• 15" touchscreen with one-touch access to all job settings and machine functions for quick and easy setups
• Rotating boom arm allows easy access to the touchscreen from any print head
• Quick access to the operator's manual

Functions

• Save all parameters of stored job: indexing speed, number of strokes, flash cure times and temperature, ink colors
• Set pallet preheat temperature with smart flash

Central Off-Contact

• Gauged click mechanism allows for precise adjustments up to 2/5 inch - 68 settings for off-contact, well above the industry standard for maximum control when printing on various substrates or using specialty inks
• Most advanced mechanical central off-contact on the market

Print Heads

• Pneumatically-driven print heads (AAA and ASA models) or A/C electric print heads (ASE models)
• Independent flood/print speed control
• Single-handed squeegee/flood bar adjustments with a range of 0° -30°
• Front and rear stroke adjustments
• Gauged squeegee/flood bar knobs provide easy depth
  adjustments
• Easily adjustable side screen clamps accommodate a wide range of screen sizes

Safety System

• Ensure safety during press setup and operation with our patented safety bars located between each print head and on each side of the load and unload stations

Skip Shirt & Smash Button

• Save time and supplies by preventing the press from printing on empty pallets with our Skip shirt function
• Smash button allows for easy skipping of improperly loaded shirts to prevent misprints

Indexing System

• Servo indexer allows for clockwise, counterclockwise and half indexing (ASA and ASE models)
• Pnuematic indexer with clockwise direction (AAA models)
• Step-Back and Multi-Step-Back programs available on models with servo indexers, and on pneumatic models in configurations of 6 stations/5 colors or smaller

Pallet System

• Slide Style pallets allow for adjustments in print location
• Tool-free locking
• Precise four-point pallet leveling system
• 16’’x 22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of specialty and custom pallets available separately
• Laser alignment system for quick and easy pallet location and apparel alignment

Options

• Quartz flash cure units
• Quick-release pallet system
• Foot pedal to control indexing
• Individual print head controls
• Special sizing available for doorways as small as 28’’
