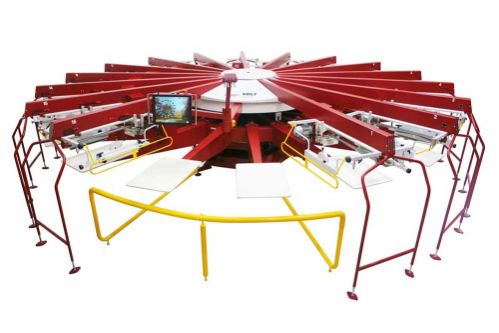

The Anatol VOLT XL is engineered for premium shops producing oversized prints, fashion jumbo graphics, blankets, banner textiles, and specialty placements requiring a 20" x 28" print area.
With its extended screen capacity (up to 26" x 43"), the VOLT XL supports large stencil areas while maintaining elite precision thanks to its servo indexer and servo lift system. Digital off-contact adjustments and on-press job storage provide exacting control over each print parameter.
Equipped with Anatol’s Aries 2 touchscreen, four-laser alignment system, and industry-leading safety bars, the VOLT XL brings world-class automation to high-volume, high-detail oversized printing.
This model is the top choice for fashion brands, contract printers, and production shops needing both size and speed with the simplicity of all-electric operation.
MODEL - XL
Stations
Colors |
Maximum
Print Area |
Maximum
Screen Size |
Standard
Pallet Size |
Press
Diameter |
Touchscreen Support* |
Electrical Requirements |
| 08/06 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
13’10” |
Boom |
1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A |
| 08/07 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
13’10” |
Boom |
1 ph 208/230v, 50/60Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A |
| 10/08 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
15’ |
Boom |
1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A |
| 10/09 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
15’ |
Boom |
1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A |
| 12/10 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
16’6” |
Boom |
1 ph 208/230v, 50/60 Hz, 36A**
3 ph 208/230v, 50/60 Hz, 20A |
| 12/11 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
16’6” |
Boom |
1 ph 208/230v, 50/60 Hz, 37A**
3 ph 208/230v, 50/60 Hz, 21A |
| 14/12 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
18 |
Stationary Arm |
3 ph 208/230v, 50/60 Hz, 23A |
| 16/14 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
19’6” |
Stationary Arm |
3 ph 208/230v, 50/60 Hz, 32A |
| 18/16 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
20’10” |
Stationary Arm |
3 ph 208/230v, 50/60 Hz, 36A |
| 20/18 |
20″ x 28″
50.8cm x 71cm |
26″ x 43″
66cm x 109.2cm |
16″ x 22″
41cm x 56cm |
22’8” |
Stationary Arm |
3 ph 208/230v, 50/60 Hz, 38A |
Print Heads
- AC electric-driven print heads enhance smoothness, speed and power
- Front and rear stroke adjustment
- Single-handed tool-less squeegee/flood bar locking
- Easily adjustable to side screen clamps accommodate a wide range of screen sizes
- Optional servo-driven print heads offer digital stroke length and squeegee pressure adjustment
Control Interface
- Aries 2 OS – User-friendly operating system
- 15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
- Rotating boom arm for easy access to each print head
- Easy access to operator’s manual
- Automatic software updates available via Wi-Fi
- Receive automatic email notifications with production statistics
- Connect the machine directly to Anatol Service with Presentation Mode
Functions
- Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
- Easily copy the same print head settings to all heads
Pallet System
- Pallet System Slide-style pallets allow for adjustments in print location
- Tool-free locking
- Precise four-point pallet leveling system
- 16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately
Registration
- True three-point micro-registration of screen (front-back, left-right, rotational movement)
- Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market
Skip Shirt & Smash Button
- Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
- Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors
Indexing System
- Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
- Smooth and quiet indexing at high speeds
- Ball bearing lead screw design with internal lubrication system
- Freewheel capability available on most models allows for manual carousel rotation
Heads Up Feature
- On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
- It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.
Central Off-Contact
- Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen
Safety System
- Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation
Laser Alignment System
- Laser alignment system for quick and easy apparel alignment
- Four independently-adjustable straight red lasers
Options
- Quartz flash cure units
- Foot pedal to control indexing
- Quick-release pallet system
- Variety of specialty and custom pallets available
- Special sizing available for doorways as small as 28’’
- Servo print heads allow you to control print stroke length and squeegee pressure digitally
- Individual print head controls-membrane panel or touchscreen
