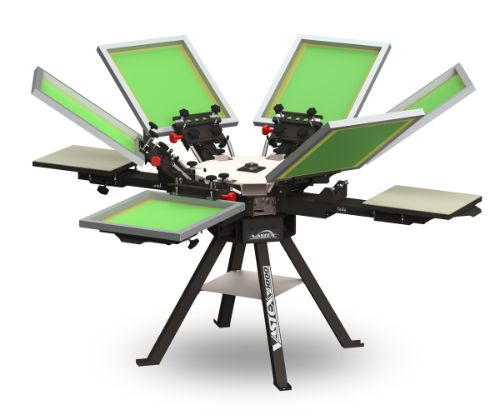

The Vastex V-1000 6 Color 4 Station Screen Printing Press is built for shops that need expanded color capability in a compact commercial-grade manual press. The V-1000 line uses Vastex’s floating head design to deliver accurate registration without the higher cost associated with presses of similar capacity. For printers producing more detailed multicolor work, the 6 color 4 station configuration offers added flexibility while maintaining the rugged build quality and repeatable performance the V-1000 series is known for.
This model features wrench-free micro-registration, 6-way head leveling adjustment, and floating heads with a 3-point bearing lock for accurate multicolor registration and multiple heads down capability. Steel pallets with rubber tops are interchangeable with the V-2000, and the press holds screens up to 21" x 28". The V1-46 model has a standard diameter of 94", a fully extended diameter of 106", standard pallet size up to 20" x 24", and unit weight of 308 lb.
Expandable and built for growing shops, the V-1000 series supports a wide range of accessories and options including utility carts, HD head upgrades, drop-down wheel sets, removable side clamps, and specialty pallets such as youth, oversized, sleeve, hat, pocket, and polo shirt pallets. For shops that want more colors without moving to a larger production footprint, the Vastex V-1000 6 color 4 station press is a versatile and accurate manual printing solution.
Go here to view more Vastex Equipment.
Download the Brochure
Manual
-
Wrench-free micro-registration
-
Floating head design
-
3-point bearing lock allows multiple heads down
-
Accurate multicolor registration
-
6-way head leveling adjustment
-
Steel pallets with rubber tops
-
Holds screens up to 21" x 28"
-
Expandable V-1000 platform
-
Compatible with V-2000 interchangeable pallets
-
Optional utility cart, HD head upgrade, wheel set, and specialty pallets
