The Pro Coat 25x36 Automatic Screen Coater is a high-efficiency solution for screen printing shops looking to improve coating consistency and increase production output without the complexity of large-scale automation. Designed as a plug-and-play system, this machine allows operators to achieve professional-quality stencil coatings with minimal setup and training.

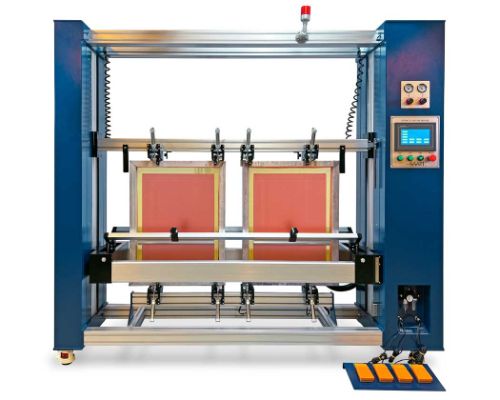

Capable of coating one oversized screen or two standard 25" x 36" screens simultaneously, the Pro Coat dramatically increases productivity while ensuring even emulsion application across every screen. Consistent coating thickness leads to improved stencil quality, better exposure results, and more reliable prints on press.
The fully programmable control system allows users to set coating parameters such as dwell time, number of coats, and coating speed for each side. Once programmed, the machine delivers repeatable results every cycle, eliminating variability associated with manual coating.
A motorized upper carriage and adjustable frame clamps make it easy to accommodate different screen profiles, while the belt-driven system ensures smooth, low-maintenance operation. The enclosed carriage design enhances safety during operation, making it suitable for busy production environments.
Whether you're upgrading from manual coating or looking to improve workflow efficiency, the Pro Coat 25x36 provides a reliable, consistent, and scalable coating solution.
View more mesh coaters from manual to automatic or other Screen Printing Equipment.
Specifications
-
Maximum Screen Capacity:
-
One screen up to 53" x 49" OD
-
Two screens up to 25" x 36" OD
-
Electrical: 110V, 20 amp
-
Air Requirements: 90 PSI, less than 1 CFM
-
Dimensions: 84.25" x 78" x 22.5"
-
Weight: Approximately 880 lbs
-
Operation: Fully automatic programmable coating system
Installation
-
Plug-and-play design
-
No assembly required
-
Connect air supply and power to begin operation
Key Features
-
Automatically coats one large screen or two 25" x 36" screens
-
Fully programmable coating settings for consistent results
-
Touchscreen control for easy operation
-
Adjustable dwell time, speed, and coating passes
-
Motorized upper carriage for different frame profiles
-
Belt-driven system for smooth, low-maintenance operation
-
Enclosed carriage for safer operation
-
Foot pedal control for hands-free loading and unloading
-
Increases coating consistency and production efficiency
