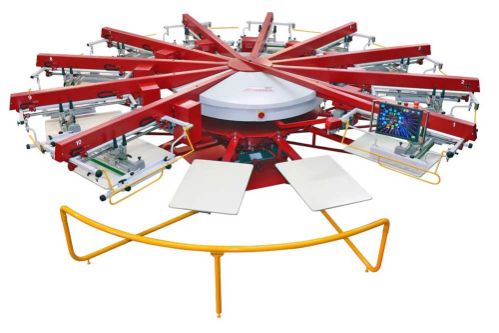

The Anatol VOLT M is the definitive mid-size all-electric automatic press for print shops ready to scale. With a 16" x 18" print area, expanded screen capacity, and elite servo-driven technology, the VOLT M blends high performance with simplified operation.
Powered by a servo indexer and servo pallet lift, the VOLT M delivers exceptional smoothness and consistent off-contact, eliminating the variability of pneumatic systems. The AC electric print heads offer fast, quiet cycling, and optional servo heads introduce digital stroke length and squeegee pressure control.
The advanced Aries 2 OS gives operators a fast, intuitive workflow, complete with job memory, one-touch setup, and full parameter control — all from a rotating 15" touchscreen placed exactly where operators need it.
MODEL - M
Stations
Colors |
Maximum
Print Area |
Maximum
Screen Size |
Standard
Pallet Size |
Press
Diameter |
Touchscreen Support |
Electrical Requirements |
| 06/04 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
9’8” |
Boom |
1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 11A |
| 06/05 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
9’8” |
Boom |
1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 12A |
| 08/06 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
10’11” |
Boom |
1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A |
| 08/07 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
10’11” |
Boom |
1 ph 208/230v, 50/60 Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A |
| 10/08 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
12’3″ |
Boom |
1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A |
| 10/09 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
12’3″ |
Boom |
1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A |
| 12/10 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
13’6” |
Boom |
1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A |
| 12/11 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
13’6” |
Boom |
1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A |
| 14/12 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
15’7″ |
Boom |
3 ph 208/230v, 50/60 Hz, 23A |
| 16/14 |
16″ x 18″
40.6cm x 45.7cm |
23″ x 33″
58.4cm x 83.8cm |
16″ x 22″
41cm x 56cm |
17’5″ |
Boom |
3 ph 208/230v, 50/60 Hz, 26A |
Print Heads
- AC electric-driven print heads enhance smoothness, speed and power
- Front and rear stroke adjustment
- Single-handed tool-less squeegee/flood bar locking
- Easily adjustable to side screen clamps accommodate a wide range of screen sizes
- Optional servo-driven print heads offer digital stroke length and squeegee pressure adjustment
Control Interface
- Aries 2 OS – User-friendly operating system
- 15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
- Rotating boom arm for easy access to each print head
- Easy access to operator’s manual
- Automatic software updates available via Wi-Fi
- Receive automatic email notifications with production statistics
- Connect the machine directly to Anatol Service with Presentation Mode
Functions
- Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
- Easily copy the same print head settings to all heads
Pallet System
- Pallet System Slide-style pallets allow for adjustments in print location
- Tool-free locking
- Precise four-point pallet leveling system
- 16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately
Registration
- True three-point micro-registration of screen (front-back, left-right, rotational movement)
- Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market
Skip Shirt & Smash Button
- Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
- Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors
Indexing System
- Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
- Smooth and quiet indexing at high speeds
- Ball bearing lead screw design with internal lubrication system
- Freewheel capability available on most models allows for manual carousel rotation
Heads Up Feature
- On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
- It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.
Central Off-Contact
- Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen
Safety System
- Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation
Laser Alignment System
- Laser alignment system for quick and easy apparel alignment
- Four independently-adjustable straight red lasers
Options
- Quartz flash cure units
- Foot pedal to control indexing
- Quick-release pallet system
- Variety of specialty and custom pallets available
- Special sizing available for doorways as small as 28’’
- Servo print heads allow you to control print stroke length and squeegee pressure digitally
- Individual print head controls-membrane panel or touchscreen
