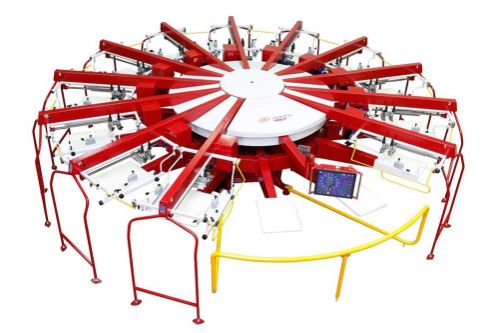

Anatol Volt L Automatic Press

The Anatol VOLT L is built for shops needing large print capability, uncompromising precision, and top-tier automation in a fully electric system. With a generous 20" x 20" print area, the VOLT L handles oversized graphics, fashion prints, jumbo front designs, and specialty placements with ease.

With servo-driven lift and index, the VOLT L delivers elite consistency and smooth operation — even in 18-color configurations. Digital off-contact adjustments allow operators to dial in settings instantly across the press, improving setup accuracy and cutting production time dramatically.

The powerful Aries 2 touchscreen platform allows job saving, job recall, and head-to-head parameter copying, giving large shops the efficiency needed to manage multi-screen workflows.

Built for expansion, precision, and demanding print environments, the VOLT L is a flagship-class solution without the air-powered complexity of traditional automatics.

MODEL - L

Print Heads

• AC electric-driven print heads enhance smoothness, speed and power
• Front and rear stroke adjustment
• Single-handed tool-less squeegee/flood bar locking
• Easily adjustable to side screen clamps accommodate a wide range of screen sizes
• Optional servo-driven print heads offer digital stroke length and squeegee pressure adjustment

Control Interface

• Aries 2 OS – User-friendly operating system
• 15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
• Rotating boom arm for easy access to each print head
• Easy access to operator’s manual
• Automatic software updates available via Wi-Fi
• Receive automatic email notifications with production statistics
• Connect the machine directly to Anatol Service with Presentation Mode

Functions

• Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
• Easily copy the same print head settings to all heads

Pallet System

• Pallet System Slide-style pallets allow for adjustments in print location
• Tool-free locking
• Precise four-point pallet leveling system
• 16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately

Registration

• True three-point micro-registration of screen (front-back, left-right, rotational movement)
• Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market

Skip Shirt & Smash Button

• Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
• Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors

Indexing System

• Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
• Smooth and quiet indexing at high speeds
• Ball bearing lead screw design with internal lubrication system
• Freewheel capability available on most models allows for manual carousel rotation

Heads Up Feature

• On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
• It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.

Central Off-Contact

• Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen

Safety System

• Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation

Laser Alignment System

• Laser alignment system for quick and easy apparel alignment
• Four independently-adjustable straight red lasers

Options

• Quartz flash cure units
• Foot pedal to control indexing
• Quick-release pallet system
• Variety of specialty and custom pallets available
• Special sizing available for doorways as small as 28’’
• Servo print heads allow you to control print stroke length and squeegee pressure digitally
• Individual print head controls-membrane panel or touchscreen
