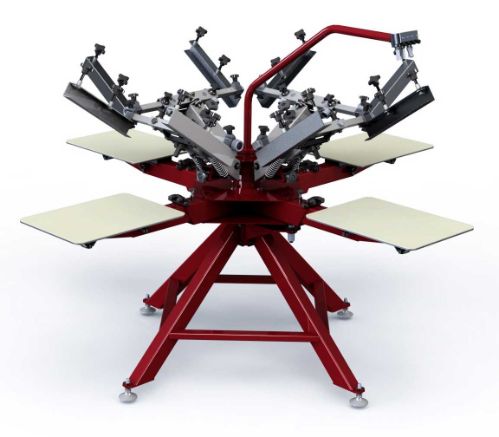

The Anatol Thunder 4 Color 4 Station manual screen printing press delivers true production-level performance in a streamlined configuration. Built on the same industrial platform as larger Thunder models, this press features the All Heads Down capability, allowing any print head to be used on any pallet for maximum flexibility and efficiency.
Designed for professional shops, the 4/4 offers the same precision micro-registration system, dual-bearing rotation, and heavy-duty construction found across the Thunder line—just with a focused four-color setup. This makes it an ideal solution for printers who prioritize workflow efficiency, repeatability, and reliability without the need for additional color stations.
Whether used as a primary production press for spot color work or as a dedicated machine for specialty jobs, the Thunder 4/4 provides consistent, high-quality results with minimal operator fatigue.
Key Benefits
-
Industrial-grade steel construction
-
Dual-bearing system for smooth rotation
-
Three-point micro-registration for accurate prints
- Laser alignment system for fast and accurate garment placement
-
Tool-less setup and adjustments
-
16” x 22” low-profile rubber-coated aluminum pallets standard
- All Heads Down
Compare with other Screen Printing Presses or find other Screen Printing Equipment.
Industrial Design & Construction
Designed to perform under constant use, the Thunder delivers stability, rigidity, and smooth operation throughout long production runs.
-
Heavy-duty steel frame for maximum durability
-
Dual-bearing carousel system for smooth, fatigue-free rotation
-
Reinforced rotation axes for long-term precision
-
High-stiffness lightweight base for stability and ease of use
-
Collapsible frame with removable legs for transport and tight installations
-
Integrated structural shelf for added rigidity
Advanced Registration System (Where This Press Stands Out)
Precision registration is one of the biggest differentiators of the Thunder.
-
Three-point micro-registration (X, Y, and rotational movement)
-
Fine-threaded adjustment system for ultra-precise alignment
-
Easy-to-read registration targets
-
Double-bearing registration locks for consistent multi-color accuracy
-
Backlash-free screen holding system for stability over long runs
-
Compatible with Anatol ARME pre-registration system and others
👉 This is a major upgrade over entry-level presses and significantly reduces setup time.
Professional Print Head System
The Thunder’s print heads are engineered for control, repeatability, and ease of use.
-
Tool-less adjustments for fast setup
-
Adjustable off-contact and screen pitch on every head
-
Spring-guided tensioning system (no lubrication required)
-
Strengthened print head design for rigidity and accuracy
-
Adjustable side clamps with swivel feet to prevent screen movement
All Heads Down Capability (6/6 Only)
-
Print any color from any head on any pallet
-
Run multiple operators at once
-
Increase throughput without increasing equipment
Pallet System & Garment Alignment
The pallet system is built for speed, consistency, and compatibility.
-
Slide-style pallet system for quick changeovers
-
Four-point pallet leveling system for precise print surfaces
-
16” x 22” low-profile rubber-coated aluminum pallets standard
-
Laser alignment system for fast and accurate garment placement
-
Compatible with automatic press pallets and some other manufacturers
Ergonomics & Operator Efficiency
Everything about the Thunder is designed to reduce fatigue and improve output.
-
Smooth rotation reduces operator strain
-
Ergonomic grips and controls
-
Minimal effort setup and adjustments
-
Consistent performance across long runs
Available Options & Upgrades
The Thunder can be configured to match your workflow:
-
Air screen clamps for instant screen locking (requires compressor)
-
Youth and sleeve pallets
-
Vacuum pallet systems
-
Quick-release pallet system
-
Side or rear clamp configurations
-
Quartz flash cure units with adjustable stands
