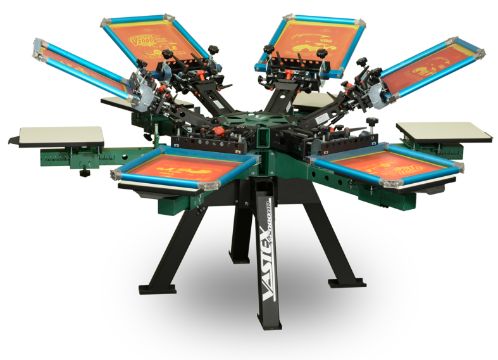

The Vastex V2000HD 6 Color 6 Station Manual Screen Printing Press is built for shops that demand speed, precision, and durability in every print run. Featuring a heavy-duty print head for the fastest set-ups and wrench-free micro-registration, it delivers consistent, accurate prints across complex multicolor jobs.
With 6 colors and 6 stations, this configuration offers a balance of capacity and flexibility, ideal for growing production demands. The V2000HD series is fully expandable, allowing you to add more stations or heads as your business scales.
Compatible with clamp-on DiGiT numbering jigs and side-clamp accessories, it enables quick changeovers between jobs. For shops looking to maximize throughput without compromising print quality, the V2000HD 6/6 is a proven performer. See all Vastex screen printing presses.
Download the Brochure
Manual
- 100% wrench-free micro adjustments
- Never warp steel pallets with rubber tops
and the new corner clamp pallet arm
- Micro-registration with wrench free controls
and zero backlash
- Embedded registration bearings (close to the screen, stays clear of spray tack)
- Prints all heads down
- 6 way screen leveling
- Accurate multicolor registration
- Gas lifters with 16 position variable lift strength
- 12" wide steel rear screen clamps joined by a steel clamp bar
for off center clamping 2.75" precision ground center shaft
- 3" square steel rotor arm with ruler indicator
- Elevated Pallets — no need to stretch shirts over the arm
(also compatible with quick stretch jacket attachment)
- Zero backlash bearings on screen arm pivot
- Adjustable micro clamp levers
- Upgrade at any time to 10 station/10 color rotary floor press
- 2 Year Limited Warranty
