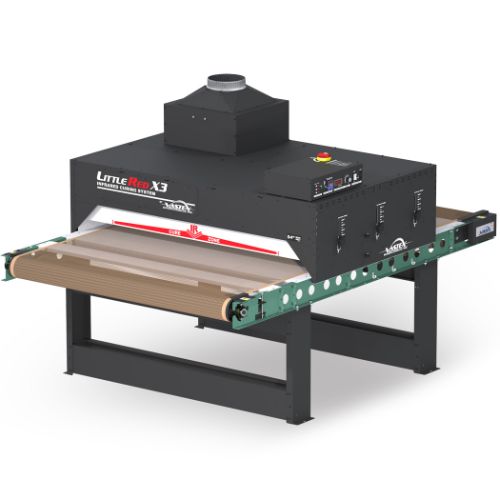

The Vastex LittleRed X3D 54" Conveyor Dryer is a high-capacity multi-purpose infrared dryer designed for professional shops handling DTG, plastisol, water-based, discharge inks, and DTF adhesives. With a 54 in. (137 cm) conveyor belt and three 48 in. (122 cm) infrared heaters (17,800W total at 240V), the X3D-54 delivers fast, consistent curing at production-scale speeds.
Its pre-heating zone quickly brings inks past 300°F within the first few inches of conveyor travel, maximizing dwell time for complete curing. The system’s digital PID temperature controller (accurate to +/-1°F) and powered exhaust system ensure precision and operator safety by removing fumes and cooling the cabinet exterior.
Capable of curing 720+ plastisol garments per hour, 370+ water-based or discharge prints per hour, and 123+ DTG prints/hr with digital white ink, the X3D-54 is ideal for medium-to-large screen printing and hybrid DTG operations.
Key Features:
-
54" wide x 88" long conveyor belt
-
Three 48" infrared heaters (17,800W total at 240V)
-
Cures:
-
720+ plastisol garments/hr
-
370+ water-based/discharge garments/hr
-
123+ DTG garments/hr (3 min dwell time)
-
High-powered preheating for faster conveyor speeds
-
Dual digital PID temperature control accurate to +/-1°F
-
Exhaust system removes fumes and cools outer cabinet
-
X-Series belt tracking with Teflon-coated fiberglass belt
-
Adjustable belt clearance (2–7 in. per side independently)
-
Modular expandability with extra chambers and belt extensions
- 5-Year Heater Warranty
The LittleRed X3D 54" is the perfect solution for shops ready to scale their DTG and screen printing production with consistent, professional results.
See all Vastex conveyor dryers. Browse all screen printing conveyor dryers.
Download the Brochure
Manual
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
Electric: 240V, 1 Phase, 17800 Watts, 71 Amps
Production: 720+ Shirts/Hour* (Plastisol)
370+ Shirts/Hour* (Waterbased/Discharge)
123+ Shirts/Hour* (DTG/digital white ink @ 3min)
Belt Width: 54"
Overall Dimensions: (L x W x H) 88" x 65" x 50"
Chamber Length: 41"
Chamber In-Feed Width: 57.5"
Chamber In-Feed Height: 2" - 7" (adjustable)
Heater Dimensions: (3) 12" x 48"
- "X-Series" Conveyor Belt Tracking System with 30" wide PTFE coated belt
- Infrared Focusing System: 2" - 7" belt-to-heater clearance, adjustable separately on each side for each heater
- DC belt speed control
- 2 Year Defect Warranty
- 5 Year Heater Warranty
Optional:
- Additional Chamber (3) 5200W / 240V heaters
- Belt Extensions (18" or 36")
- Wheel set with locking casters for easy mobility
Call
(800) 621-4173 for more information regarding additional options. Such
as the exhaust hood, low friction belt aligner
(recommended for longer conveyor belts), and heavy duty belt motor (also recommended for longer conveyor belts).
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
What is the Infrared Focusing System?
Infrared emitters have an optimal distance at
which they operate most efficiently. If the emitter is too far away
energy is wasted and lost in the distance. If the emitter
is too close the substrate may come in contact with the emitter
surface. Adjusting the heater height is an absolute necessity if the
products that you print vary in height. We want to maintain an
approximate distance of 2 1/2" from heater surface to ink.
