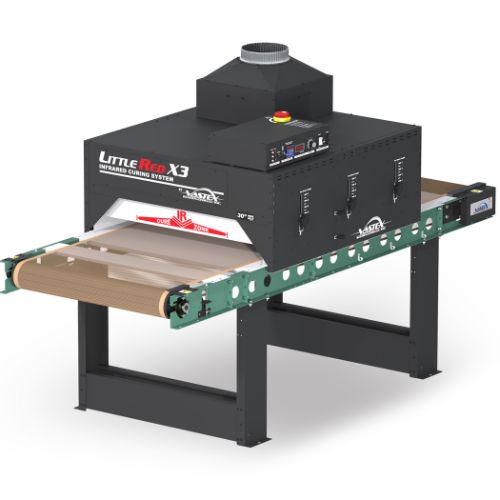

The Vastex LittleRed X3D 30" Conveyor Dryer is a versatile, high-performance solution for shops running DTG, plastisol, water-based, discharge inks, or DTF adhesives. Built for speed and consistency, this dryer uses three 24" infrared heaters (8,900W total at 240V) and a 30 in. (76 cm) wide belt to deliver professional curing results at higher rates than conventional designs.
The X3D-30’s high-powered pre-heating zone rockets ink temperatures past 300°F within the first few inches of travel, maximizing dwell time for efficient curing. This allows faster conveyor speeds, higher throughput, and reliable results across a wide range of ink systems.
With the ability to cure 360+ plastisol-printed garments per hour, 185+ water-based/discharge garments per hour, and 51+ DTG garments/hr with digital white ink (at 3 minutes dwell time), the X3D-30 is a powerful yet compact dryer for growing shops.
Key Features:
- 30" wide x 88" long conveyor belt
- Three 24" infrared heaters (8,900W total)
- Cures:
- 360+ plastisol garments/hr
- 185+ water-based or discharge garments/hr
- 51+ DTG white ink garments/hr (3 min dwell time)
- High-powered preheat zone for rapid curing
- Digital PID temperature controller accurate to +/-1°F
- Exhaust system removes fumes and moisture, cools cabinet exterior
- X-Series belt tracking with Teflon-coated fiberglass belt
- Adjustable belt clearance (2–7 in. each side independently)
- Modular and expandable with extra chambers and belt extensions
- 5-Year Heater Warranty for long-term reliability
The LittleRed X3D 30" is ideal for DTG shops, screen printers, and hybrid setups needing consistent results across multiple ink systems. With modular expandability, it’s a dryer that grows with your production.
View all Vastex conveyor dryers. See all screen printing conveyor dryers
Download the Brochure
Manual
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
Electric: 240V, 1 Phase, 8900 Watts, 38 Amps
Production: 360+ Shirts/Hour* (Plastisol @ 25secs)
185+ Shirts/Hour* (Waterbased/Discharge @ 50secs)
51+ Shirts/Hour* (Digital White Ink @ 3min)
Belt Width: 30"
Overall Dimensions: (L x W x H) 88" x 41" x 50"
Chamber Length: 41"
Chamber In-Feed Width: 33.5"
Chamber In-Feed Height: 2" - 7" (adjustable)
Heater Dimensions: (3) 12" x 24"
- "X-Series" Conveyor Belt Tracking System with 30" wide PTFE coated belt
- Infrared Focusing System: 2" - 7" belt-to-heater clearance, adjustable separately on each side for each heater
- DC belt speed control
- 2 Year Defect Warranty
- 5 Year Heater Warranty
Optional:
- Additional Chamber (3) 2600W / 240V heaters
- Belt Extensions (18" or 36")
- Wheel set with locking casters for easy mobility
Call
(800) 621-4173 for more information regarding additional options. Such
as the exhaust hood, low friction belt aligner
(recommended for longer conveyor belts), and heavy duty belt motor (also recommended for longer conveyor belts).
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
What is the Infrared Focusing System?
Infrared emitters have an optimal distance at
which they operate most efficiently. If the emitter is too far away
energy is wasted and lost in the distance. If the emitter
is too close the substrate may come in contact with the emitter
surface. Adjusting the heater height is an absolute necessity if the
products that you print vary in height. We want to maintain an
approximate distance of 2 1/2" from heater surface to ink.
