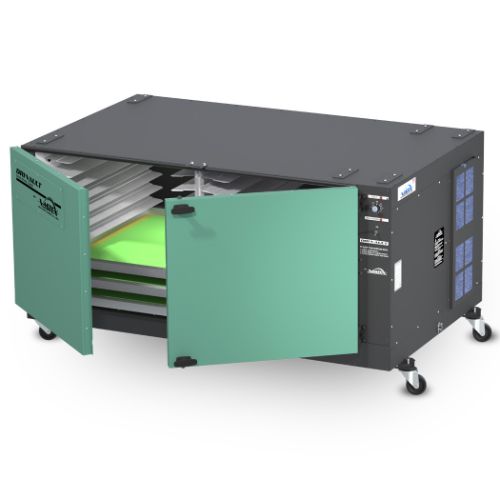

The Vastex Dri-Vault 20 Screen Drying Cabinet is the ultimate solution for shops working with both standard and wide-format screens. With the capacity to hold up to 20 standard 25" x 36" screens or 10 oversized 51" x 36" screens, this cabinet combines efficiency with versatility.
Equipped with a 290 CFM blower, industrial stainless steel finned heaters, and pressurized filtered airflow, the Dri-Vault 20 dries screens evenly while preventing dust and contaminants from entering the cabinet. Screens rest horizontally on removable, angled shelves to minimize contact and ensure clean, consistent emulsion curing.
The Dri-Vault 20 is constructed with a light-tight, heavy-duty double wall, making it ideal for professional darkroom setups. Drying times can be as short as 40 minutes when fully loaded, and the optional digital temperature control provides precise, repeatable results.
See all screen printing drying cabinets.
**Drying times will vary. Humidity, thickness and type of emulsion used,
and size of screens are factors in Dri-Vault curing time.
Download the Brochure
Manual
Electric: 240V / 6A / 1 Ph. / 50-60 HZ, NEMA 6-15P plug
Dimensions: (Width x Depth x Height) 63" x 38" x 33"
Requirements: 20 amp. grounded outlet, 240VAC / 20 Amp
- Holds (10) 51" x 36" or (20) 25" x 36" screens up to 1.625" thick
- Industrial stainless steel finned heater
- (1) 290 CFM (8.5 CMM) air flow blower
- Filtered air intake, easy to replace
- Pressurized air flow system keeps screens clean
- Breaker/switch and pilot light for easy control
- Screens sit horizontal on removable shelves
- Shelves are angled for point contact
- Heavy duty double wall & light tight
- Adjustable sealed door with mechanical latch handles
- 4" Exhaust duct for contaminated air removal
- 2 Year Limited Warranty
Optional Additions: heavy-duty locking casters, stainless steel shelves
