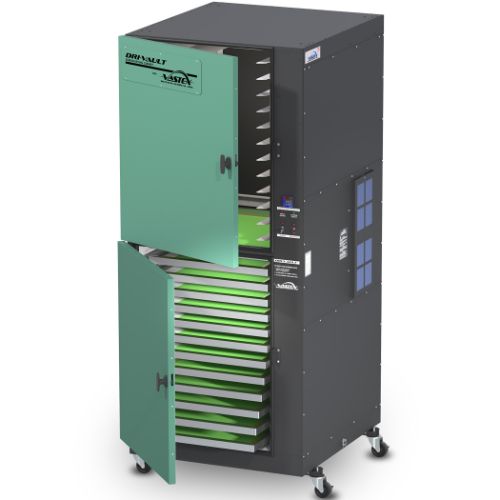

The Vastex Dri-Vault 24 Screen Drying Cabinet is built for high-production shops that need to dry large volumes of emulsion-coated screens quickly, consistently, and free from dust contamination. Using variable heat and powerful filtered airflow, the Dri-Vault can dry up to 24 screens in as little as 20 minutes, helping you maintain fast turnaround and professional-quality stencils.
Designed with a pressurized chamber and dual latching doors, the Dri-Vault 24 prevents dust and contaminants from entering, ensuring clean, consistent results. This larger-capacity model comes standard with a digital temperature controller, giving you precise, repeatable drying performance every time.
Browse our full line of screen printing drying cabinets.
**Drying times will vary. Humidity, thickness and type of emulsion used,
and size of screens are factors in Dri-Vault curing time.
Download the Brochure
Manual
Electric: 240V / 16A / 1 Ph. / 50/60 HZ, NEMA 6-20P plug
Dimensions: (Width x Depth x Height) 40" x 35" x 81"
Requirements: 240 VAC 50/60 Hz, 15-amp power draw, 20-amp Nema 6-20P plug
- Controlled environment, free of dust and lint
- Holds (24) 15.5"-25" x 36" screens
- Digital temperature controller
- Industrial-grade stainless steel finned heater
- Quick, consistent, and clean drying
- Air only or heat and air options
- Filtered air intake
- Pressurized airflow system
- Removable angled shelves
- Heavy-duty double wall
- Adjustable sealed door with mechanical latch handles
- Heavy-duty locking casters
- 2 Year Limited Warranty
