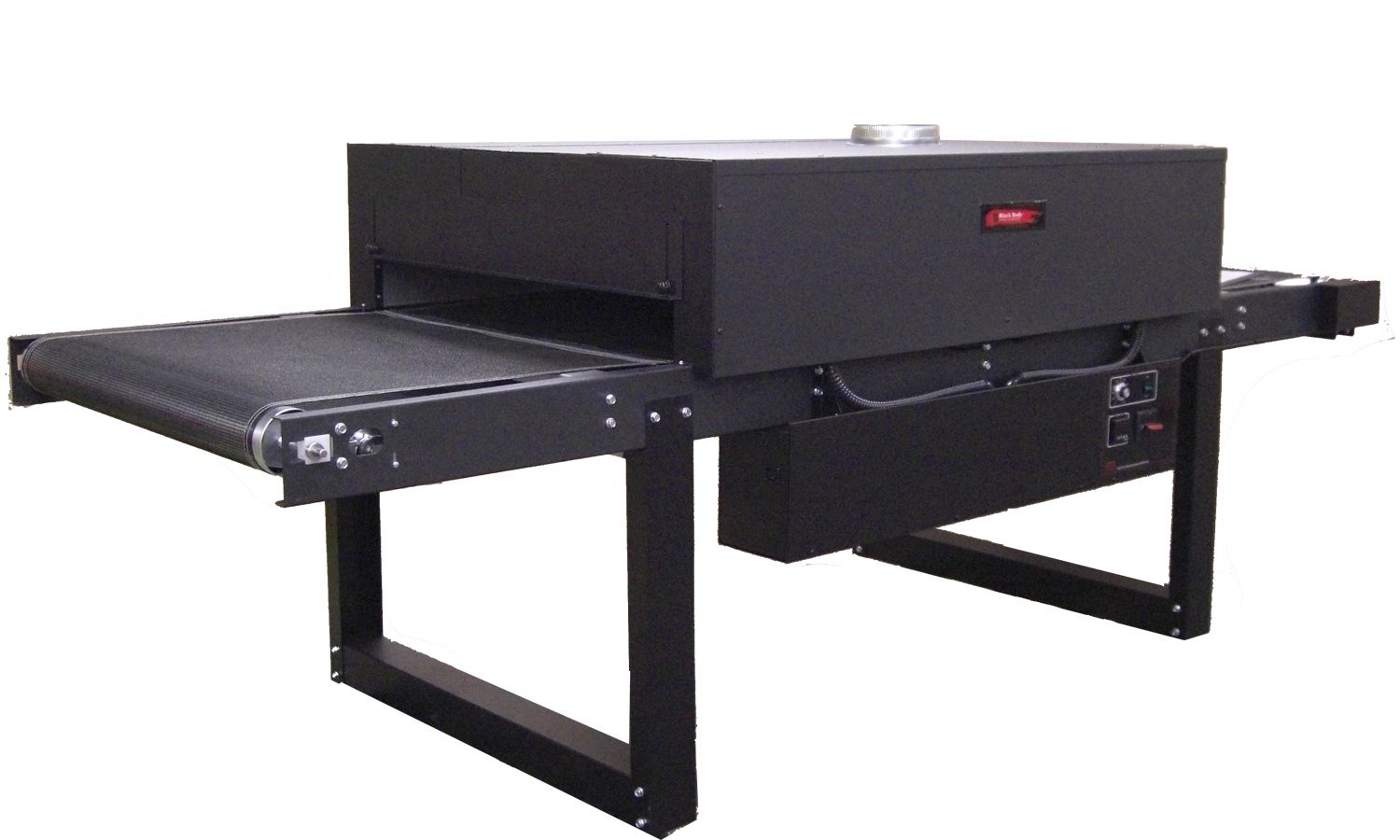

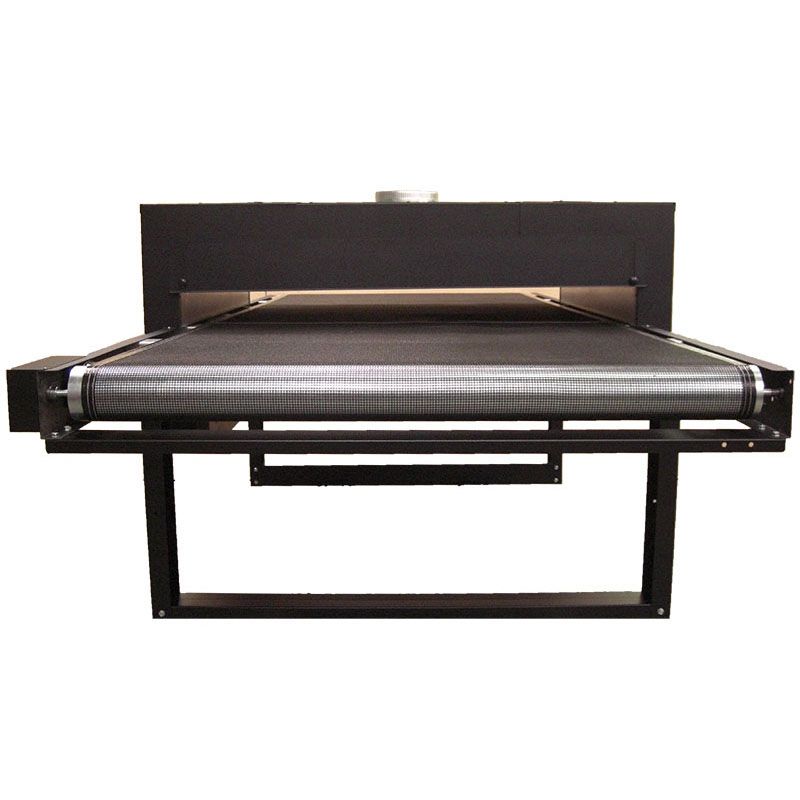

T-Series Industrial Conveyor Dryers have an unbeatable combination of power and options. The T-Series offers 16 different models with a combination of belt width, bed length, oven chamber, voltage and belt material.
- "Hassle-Free" Belt Tracking System
- 4ft or 5 ft Oven Chamber
- PTFE Coated or Stainless Steel Belt
- 208 Volt or 240 Volt Operation
- Digital Solid State Temperature Control On All Models
- Analog Speed Control
- Analog Conveyor Controls Standard
- Length of Conveyor and Over Chamber are interchangeable
- Height of Curtains on Conveyor Adjusts to Keep as Much Heat in as Possible
- Ships Completely Assembled
- 3 Year Warranty on Heaters
Download the Brochure
Electric: 4 ft Chamber - 208V/240V, 1 Phase, 9260/12350 Watts, 44.5/51.5 Amp
5 ft Chamber - 208V/240V, 1 Phase, 13,400/17,860 Watts, 64.4/74.4 Amp
Production: 4 ft Chamber up to 480 Shirts/Hour
5 ft Chamber up to 600 Shirts/Hour
Belt Width: 36"
Chamber Length: 48" or 60"
Entrance/Exit: 4 ft Chamber: 24" - 5ft Chamber: 18"
