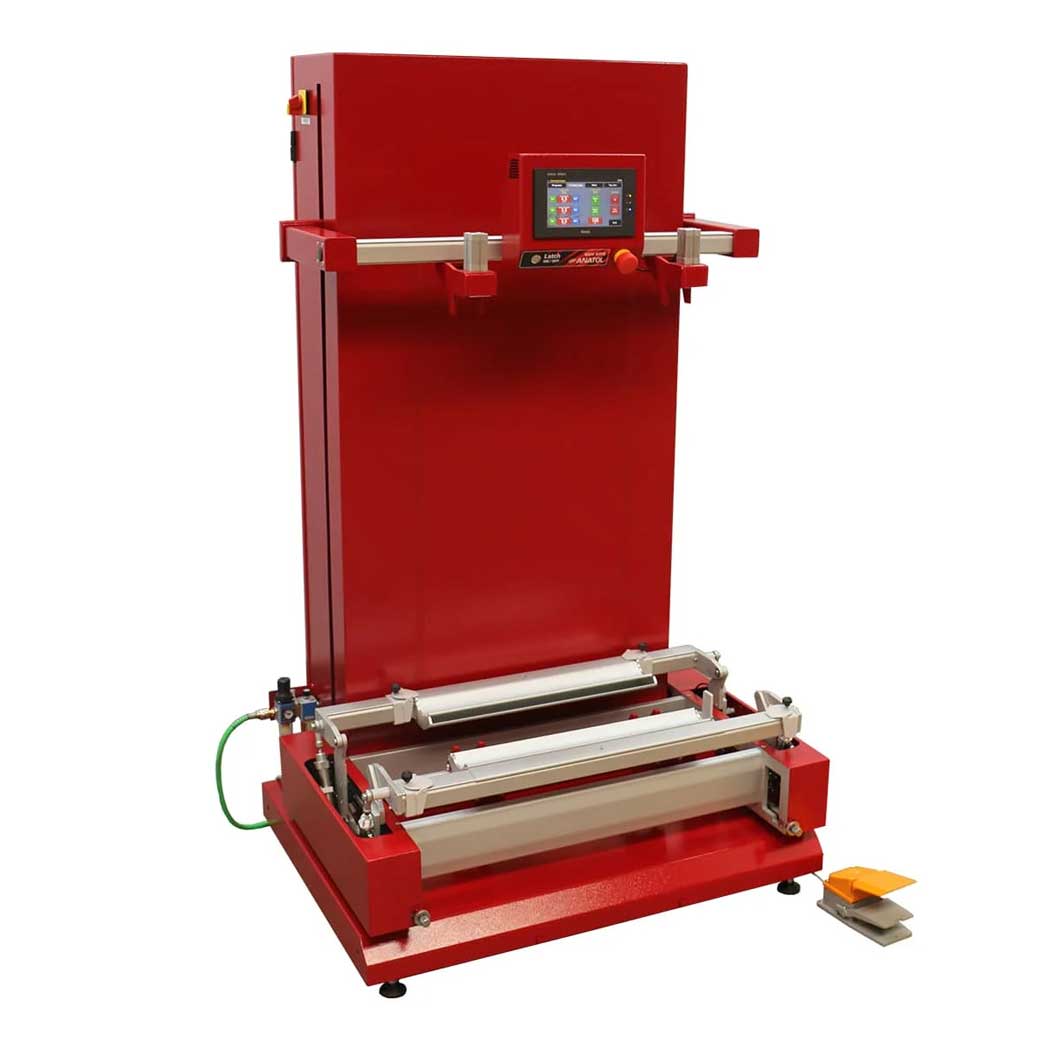

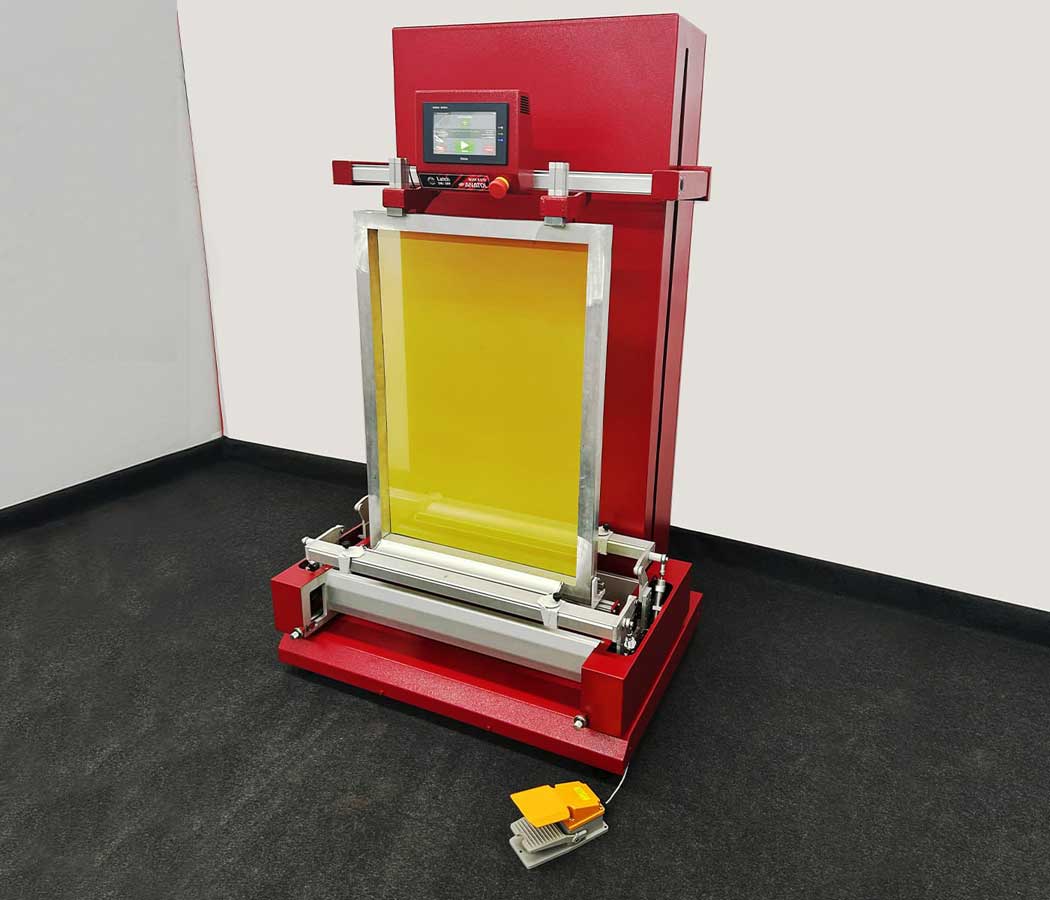

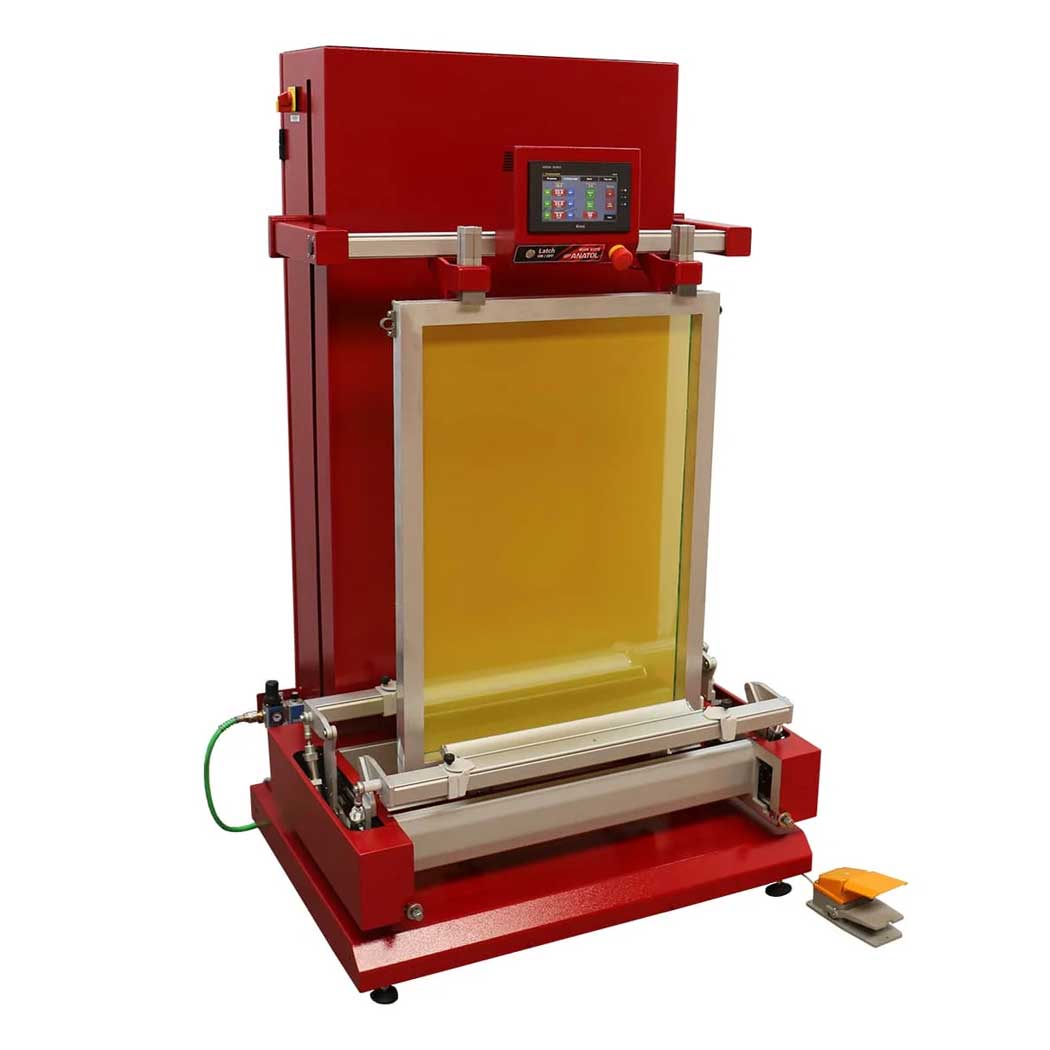

The Anatol Quik-Kote Mini Automatic Emulsion Coating Machine is a compact, production-ready solution designed to shorten screen prep time and deliver more consistent emulsion coating for higher quality prints. By replacing manual coating with servo-controlled precision, the Quik-Kote Mini helps screen printers improve stencil consistency, reduce setup variability, and create a more efficient pre-press workflow. It is a strong fit for shops that want automated coating performance without taking up unnecessary floor space.
Built for versatility and ease of use, the Quik-Kote Mini supports screen frame sizes from 18" tx 19" all the way up to 30" x 45" and thicknesses from 0.8" to 2". The machine features adjustable screen holders, reliable screen locks, a foot pedal for easier screen replacement, and an electric servo-controlled top arm for fast screen size adjustment. A user-friendly touchscreen control panel with intuitive interface allows operators to save up to 20 programs with individual screen height and coating parameters for faster repeat setups and more consistent results.
View more Anatol Equipment or other Screen Printing Equipment.
| Dimensions | 67.3’’ x 39.4’’ x 28’’
(171cm x 100cm x 71.1cm) |
| Weight | 460lb (210kg) |
| Compatible Screen Size | 18’’ x 19’’ to 30" x 45" |
| Compatible Screen Frame Thickness | 0.75’’ x 0.75’’ up to 0.8’’ x 2’’
(2cm x 2cm up to 2.2cm x 5cm) |
| Air Requirements | 0.56 CFM (16 l/min) @60PSI |
| Air Pressure | 58 PSI (4 bar) |
| ELECTRICAL REQUIREMENTS | 1ph, 208-240V, 50/60Hz, 4A
Max Power: 850W |
Key Features
-
Automatic emulsion coating for more consistent screen prep
-
Servo-controlled precise bucket movement
-
Independent and simultaneous work of front and rear buckets
-
Two coating range adjustment modes
-

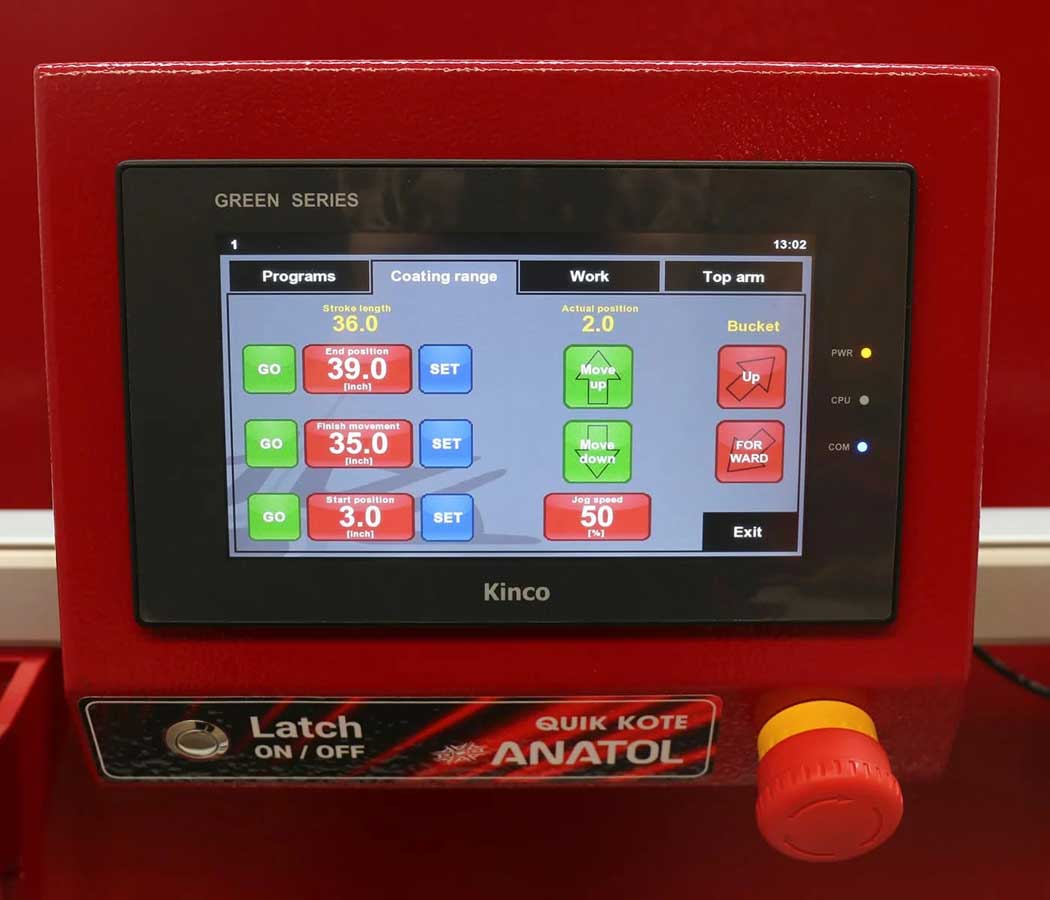

User-friendly touchscreen control panel
-
Save up to 20 coating programs
-
Adjustable control panel angle for easier operation
-
Supports screen frame sizes from 18" x 19 to 30" x 45"
-
Supports screen frame thickness from 0.8" to 2"
-
Electric servo-controlled top arm position adjustment
-
Adjustable screen holders for a wide variety of frame sizes
-
Easy and reliable screen locks
-
Foot pedal screen lock for easier screen replacement
-
Uniform scoop coater pressure for smooth, even emulsion coating
-
Robust and solid construction
-
Easy scoop replacement
