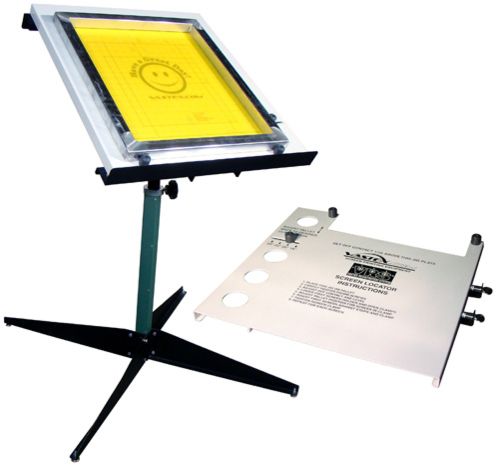

VRS Pin Registration System (Manual Presses)

REGISTERS PRECISELY IN 4 QUICK STEPS

The Vastex Registration System (VRS) is an ultra-fast and -accurate pin registration system that enables anyone to locate positives onto the screens off-press — then locate the screens onto any rear clamp press with all colors in register — in 4 easy steps:

1. Attach your positives to setup sheets in register, using the alignment grid/pinboard
2. Locate and attach your positives in register to your screens using a Vastex pin board with screen stops
3. Burn all your screens on any exposure unit in register
4. Locate and clamp each screen onto your press in register using the Vastex pallet jig and its corresponding screen stops

— ready to print in less than 3 minutes per screen!

Works with ANY exposing unit and ANY rear clamp manual press.

MAKES MONEY FOR LARGE AND SMALL SHOPS ALIKE

Larger shops can boost output dramatically by moving screen registration from the printing department to the art department!

One-man shops can slash the time and increase the accuracy of screen registration from one to 10 colors!

All shops can:

• Cut overall registration time and lost profits by 70% to 90%
• Improve registration accuracy and print quality
• Reduce rejects
• Create a registration standard for your shop — no more guesswork or random placements
• Recoup the investment in less than one week

VRS Pin Registration System for Manual Presses will work with ANY exposing unit and ANY rear clamp manual press.

PINBOARD SPECIFICATIONS:

• 21" x 26" Pinboard constructed of durable heavy gauge steel with anti-rust treatment
• 2 Precision positioning pins
• Adjustable side stop for screens (18" to 24" width)
• Layout graph with guidelines for:
  • Standard and over-sized size shirts
  • Front left chest
  • Standard and youth pallet sizes
  • 12" x 12" image area
• 24 set-up sheets

PALLET JIG SPECIFICATIONS:

• Standard fits 15" x 17" Pallets (available for all pallet sizes)
• Rugged heavy gauge steel construction with anti-rust treatment
• 4 Thumb screws to clamp to pallet
• 2 Rear positioning stops (fixed)
• 1 Side positioning stop (adjustable for 18" to 24" wide screens)
• Easy to read instructions printed directly on Jig surface
