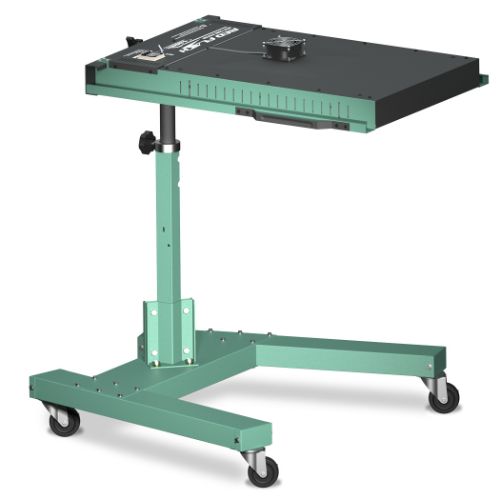

The Vastex RedFlash Flash Cure Unit 18" x 18" combines a high-wattage, high-density infrared heater with digital heat control for consistent flash curing. Its digital percentage control allows for repeatable adjustments from 0–100%, while diagnostic pilot lights make the controls easy to monitor during production.
A built-in cooling fan and air curtains allow the flash unit to be positioned closer to the work, increasing efficiency and productivity. The RedFlash also features an ultra-slim 2.75" head, head leveler, heavy-duty side handles, and locking casters.
Designed for fast screen printing production, the RedFlash can flash plastisol ink in as little as 4 seconds. The standard RD-18-240 configuration features an 18" x 18" heater with 2,600 watts at 240V, while Vastex also offers a 3,500-watt high-output 18" x 18" configuration.
For shops looking to expand their screen printing equipment with a digitally controlled infrared flash cure unit, the Vastex RedFlash combines a thin-profile design with adjustable heat and fast plastisol flashing.
Browse all Screen Printing Flash Units
Download the Brochure
Manual
Electric: 240V / 3500W / 16A / NEMA 6-20P
Unit Warm-Up Time: 12 min.
- Head rotates 360°
- Casters Included
- Adjustable Heat Control
- User friendly diagnostic pilot lights
- Convenient heavy-duty side handles
- Low profile (2.75" head height)
- Adjustable height
- Low cost maintenance
- Vented heat shield
- Anti-rust treatment on all painted steel
- Flash plastisol in 7-10 seconds
- 5 Year Heater Warranty
- 2 Year Bumper to Bumper Warranty
