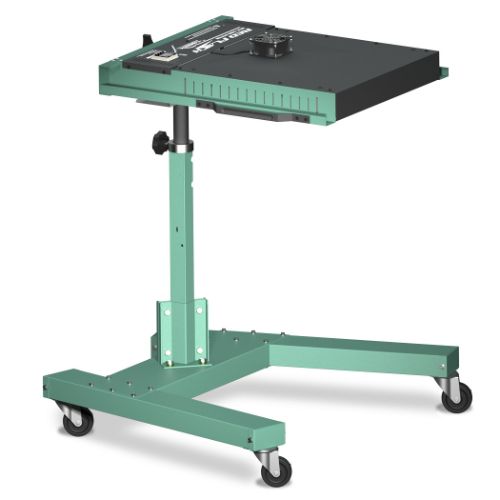

The Vastex RedFlash 18" x 18" Flash Cure Unit is designed for fast, uniform curing with digital temperature control and a high-wattage, close coil density infrared heater. Its cooling fan and air curtain keep the outer surface safe to touch while maintaining consistent, edge-to-edge heat—ideal for plastisol inks and multicolor printing.
With a low-profile head height of just 2.75", the RedFlash is easy to position and maneuver. The fully adjustable digital controls allow precise heat settings from 0–100% for repeatable results, while diagnostic indicator lights simplify operation.
Key Features:
-
18" x 18" high-output infrared heater
-
Digital heat control with diagnostic indicator lights
-
Cooling fan and air curtain for uniform temperature
-
Low-profile 2.75" head height
-
Adjustable height, head level, and heat shield
-
Heavy-duty side handles and locking casters
-
Flashes plastisol in 7–10 seconds
- 5-Year Heater Warranty and 2-Year Bumper-to-Bumper Warranty
Upgrade your shop with the Vastex RedFlash for faster production, improved consistency, and reliable performance for years to come.
See all available Screen Printing Flash Units.
Download the Brochure
Manual
Electric: 240V / 9A / 2600W /
NEMA 6
-
15P
Unit Warm-Up Time: 6 min.
- Head rotates 360°
- Casters Included
- Adjustable Heat Control
- User friendly diagnostic pilot lights
- Convenient heavy-duty side handles
- Low profile (2.75" head height)
- Adjustable height
- Low cost maintenance
- Vented heat shield
- Anti-rust treatment on all painted steel
- Flash plastisol in 7-10 seconds
- 5 Year Heater Warranty
- 2 Year Bumper to Bumper Warranty
