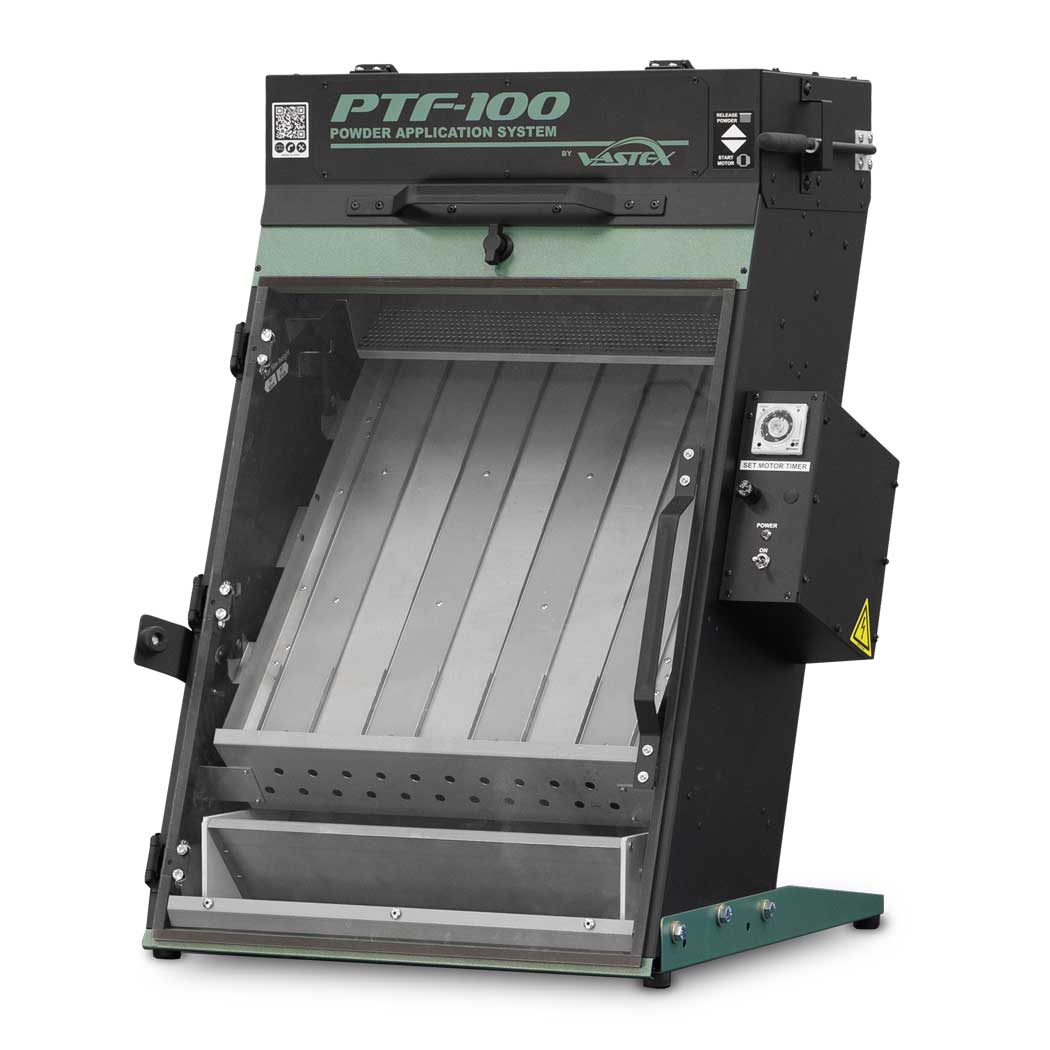

The Vastex PTF-100 Powder-To-Film System is a compact, enclosed DTF powder applicator designed to make adhesive powder application cleaner, safer, and more repeatable. Instead of coating wet DTF films in an open container, the PTF-100 applies powder inside a sealed cabinet to help reduce airborne dust, spills, and wasted powder.
A filled cartridge releases adhesive powder over the printed film for uniform coverage. The adjustable timed vibration cycle then removes excess powder from the film and collects it in a second interchangeable cartridge. The cartridges can be switched quickly for clean refilling and continued production, helping reduce waste and operator handling.
Designed for sheet-fed DTF production, the PTF-100 accommodates film up to 16.5" x 22", depending on configuration. Its compact 24" x 24" footprint fits shops with limited space and can also be mounted on an optional mobile stand for transport or organized production.
The PTF-100 pairs well with a Vastex D-100 or D-1000 conveyor dryer equipped with a powered exhaust hood, creating a compact powder-application and curing workflow for DTF transfers.
Download the Brochure
Manual
- Enclosed DTF adhesive powder application system
- Helps reduce airborne powder, spills, and workspace mess
- Sealed clear polycarbonate access door
- Rear-mounted exhaust creates negative pressure inside the cabinet
- Uniform powder coverage for wet DTF printed films
- Adjustable powder application
- Adjustable timer for repeatable vibration cycles
- Vibration removes excess powder from the film
- Two interchangeable powder cartridges
- Each cartridge holds approximately 3 lb of adhesive powder
- Excess powder is collected for reuse
- Quick and clean cartridge changes
- Accommodates films up to 16.5" x 22", depending on configuration
- Compact footprint for smaller production spaces
- Available in 120V or 240V
- Made in the USA
- Patent-pending design
- Maximum film size: Up to 16.5" x 22", depending on configuration
- Footprint: Approximately 24" L x 24" W
- Height: Approximately 33"
- Electrical: 120V or 240V
- Power requirement: 1A, 50/60Hz
- Powder-cartridge capacity: Approximately 3 lb each
- Standard shipping box: 18" x 28" x 42"
- Boxed shipping weight: Approximately 90 lb
- Freight-crate dimensions: 31" x 31" x 39"
- Crated shipping weight: Approximately 160 lb
Available Options
- Modification for larger film sizes
- Additional powder cartridge
- S1-27 mobile equipment stand
- Mobile stand with four storage drawers
- Stand and dryer combinations
- Vastex D-100 conveyor dryer with powered exhaust
- Vastex D-1000 conveyor dryer configuration
Application Note
The PTF-100 applies adhesive powder and removes excess powder from printed DTF film. A compatible curing system is still required to melt or gel the powder before the transfer is applied with a heat press.
