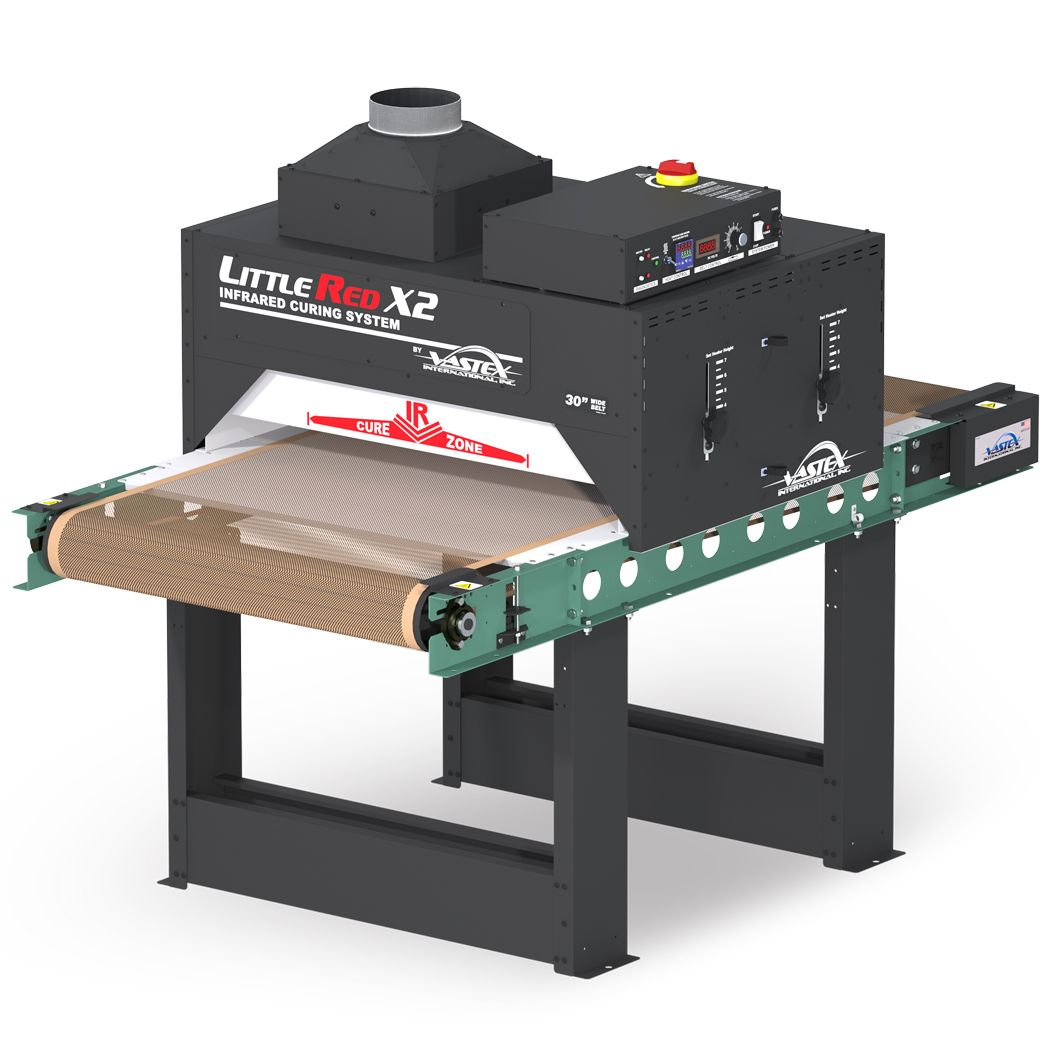

The Vastex LittleRed X2 30" Conveyor Dryer is a mid-level dual-heater infrared conveyor dryer designed for entry-level to growing shops that need reliable, repeatable results at higher production rates. With a 30 in. (76 cm) wide belt and two 24 in. (61 cm) wide 240V/2,600 watt heaters (total 5,200 watts), the X2-30 can cure up to 260 plastisol-printed images per hour, along with water-based, discharge inks, and DTF adhesives.
Engineered for efficiency and accuracy, the LittleRed X2 includes closely spaced infrared coils for consistent edge-to-edge heat, a digital PID temperature controller accurate to +/-1°F, and a powered exhaust system that cools the outer cabinet while removing moisture and fumes.
The unit’s “X-Series” Conveyor Belt Tracking System ensures smooth operation, while the low-friction Teflon-coated fiberglass belt provides reliable garment handling. With adjustable belt-to-heater clearance (2–7 inches), optional belt extensions, and the ability to add extra heating chambers, the X2 grows as your shop grows.
The LittleRed X2 30" Conveyor Dryer is ideal for small to mid-sized screen printing shops looking for reliable performance and room to expand production capacity.
See all screen printing conveyor dryers.
Download the Brochure
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
Electric: 240V, 1 Phase, 5200 Watts, 21.6 Amps
*** Wire and plug not included. Terminal block provided for on-site electrical hookup. Must adhere to local regulations. Consult licensed electrician. ***
Production: 260+ Shirts/Hour* (Plastisol)
90+ Shirts/Hour* (Waterbased/Discharge)
Belt Width: 30"
Overall Dimensions: (L x W x H) 66" x 41" x 50"
Chamber Length: 27"
Chamber In-Feed Width: 33.5"
Chamber In-Feed Height: 2" - 7" (adjustable)
Heater Dimensions: (2) 12" x 24"
- "X-Series" Conveyor Belt Tracking System with 30" wide PTFE coated belt
- Infrared Focusing System: 2" - 7" belt-to-heater clearance, adjustable separately on each side for each heater
- DC belt speed control
- 2 Year Defect Warranty
- 5 Year Heater Warranty
Optional:
- Additional Chamber (2) 2600W / 240V heaters
- Belt Extensions (18" or 36")
- Wheel set with locking casters for easy mobility
Call
(800) 621-4173 for more information regarding additional options. Such
as the exhaust hood, low friction belt aligner (recommended for longer conveyor belts), and heavy duty belt motor (also recommended for longer conveyor belts).
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
What is the Infrared Focusing System?
Infrared emitters have an optimal distance at
which they operate most efficiently. If the emitter is too far away
energy is wasted and lost in the distance. If the emitter
is too close the substrate may come in contact with the emitter
surface. Adjusting the heater height is an absolute necessity if the
products that you print vary in height. We want to maintain an
approximate distance of 2 1/2" from heater surface to ink.
