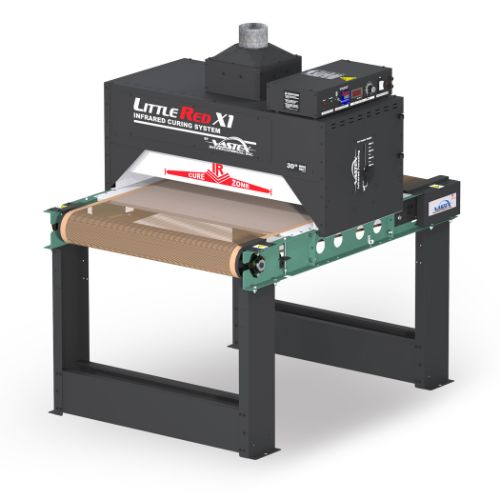

The Vastex LittleRed X1 30" Conveyor Dryer is a reliable, compact solution for entry-level to mid-sized screen printing shops. With a 30 in. (76 cm) wide conveyor belt and a 24 in. (61 cm) infrared heater, the X1-30 offers efficient curing for plastisol, water-based, discharge inks, and DTF adhesives.
Available with either a 120V/2,000 watt heater (90 plastisol prints/hr) or a 240V/2,600 watt heater (up to 130 plastisol prints/hr), this dryer provides flexible power options to fit your shop’s needs. It can also cure 45 water-based or discharge prints/hr, making it versatile for multiple ink systems.
Engineered for consistent results, the X1-30 features closely spaced infrared coils for uniform heating, a digital PID temperature controller accurate to +/-1°F, and the X-Series Conveyor Belt Tracking System with a Teflon-coated fiberglass belt. A powered exhaust system removes fumes while cooling the cabinet exterior for operator safety.
Key Features:
-
30" wide x 48" long conveyor belt
-
24" infrared heater, 2,000W @ 120V or 2,600W @ 240V
-
Cures up to 130 plastisol prints/hr or 45 water-based/discharge prints/hr
-
Handles DTF adhesives at consistent output
-
Digital PID temperature controller (+/-1°F accuracy)
-
Powered exhaust removes fumes and moisture
-
Adjustable belt clearance: 2–7 in. (per side independently)
-
Expandable with additional chambers or belt extensions
-
Low friction belt aligner and DC belt speed control with digital display
-
Heavy-duty construction with 5-Year Heater Warranty
The LittleRed X1 30" is ideal for small to mid-sized shops ready to improve consistency and efficiency with a conveyor dryer that grows as your production increases.
View all Vastex conveyor dryers. See all screen printing conveyor dryers
Download the Brochure
Manual
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
Electric: 120V, 1 Phase, 2000 Watts, 16.5 Amps (NEMA 5-
20P) or
240V, 1 Phase, 2600 Watts, 11 Amps (NEMA 6-15P)
Production: 130+ Shirts/Hour* (Plastisol)
40+ Shirts/Hour* (Waterbased/Discharge)
Belt Width: 30"
Overall Dimensions: (L x W x H) 48" x 41" x 48"
Chamber Length: 18"
Chamber In-Feed Width: 33.5"
Chamber In-Feed Height: 2" - 7" (adjustable)
Heater Dimensions: 12" x 24"
- "X-Series" Conveyor Belt Tracking System with 30" (76 cm) wide PTFE coated belt
- Infrared Focusing System: 2" - 7" belt-to-heater clearance, adjustable separately on each side for each heater
- DC belt speed control
- 2 Year Defect Warranty
- 5 Year Heater Warranty
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
What is the Infrared Focusing System?
Infrared emitters have an optimal distance at
which they operate most efficiently. If the emitter is too far away
energy is wasted and lost in the distance. If the emitter
is too close the substrate may come in contact with the emitter
surface. Adjusting the heater height is an absolute necessity if the
products that you print vary in height. We want to maintain an
approximate distance of 2 1/2" from heater surface to ink.
