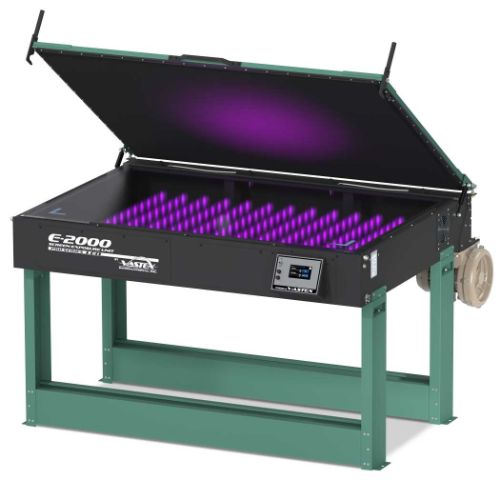

The Vastex E-2000 5236 LED Exposure Unit is the top-tier model in the E-2000 Series, built for high-volume screen printers demanding precision, speed, and energy efficiency. Its twelve high-output 30″ LED light bars deliver powerful, uniform illumination that exposes screens up to 52″ × 36″ (or two 25″ × 36″ screens simultaneously) in a fraction of the time of fluorescent or metal halide systems
The ½ HP ring-blower vacuum system achieves tight screen-to-film contact in 4–6 seconds, producing crisp halftones and fine line details at up to 85 LPI. The integrated LCD touchscreen controller offers 10 programmable presets for different mesh counts, emulsions, or film types and provides simple one-button operation for both vacuum and exposure cycles.
Operating at just 20 percent of the power required for metal halide units, the E-2000 5236 significantly reduces energy costs while maintaining ultra-fast exposure times. Its slim design allows mounting on the Vastex Dri-Vault Screen Drying Cabinet, saving valuable darkroom space without sacrificing performance.
Why Choose the E-2000 5236?
Engineered for production shops and industrial screen printers, the Vastex E-2000 5236 delivers maximum throughput with precision control. Its combination of speed, LED efficiency, and long-life durability makes it a top choice for high-volume operations printing posters, textiles, or wide-format graphics.
Explore more Vastex Exposure Units or view all Screen Printing Equipment.
Download the Brochure
Manual
Key Features
-
Large Format Capacity – Holds one 52″ × 36″ screen or two 25″ × 36″ screens.
-
Ultra-Fast Exposure – Exposes screens up to 15× faster than fluorescent systems.
-
High-Resolution Output – Produces fine halftones and intricate graphics up to 85 LPI.
-
Powerful Vacuum System – ½ HP ring blower achieves full vacuum in 4–6 seconds.
-
LCD Touchscreen Controller – Store and recall up to 10 exposure presets for different jobs.
-
Energy Efficient – Consumes 80% less power than metal halide lamps.
-
Durable Construction – ¼″ tempered glass and heavy-duty frame ensure long life.
-
LED Longevity – 50,000+ hour bulb life with even light distribution.
-
Compatible with Dri-Vault Drying Cabinet – Stackable for compact darkroom layouts.
-
Warranty – 2-year manufacturer coverage and 5-year LED light warranty.
Specifications
-
Maximum Screen Size: 52″ × 36″ (132 × 91 cm) or (2) 25″ × 36″ (63 × 91 cm)
-
Image Area: 46″ × 36″ (116 × 91 cm)
-
Light Source: Twelve VLB-HO-30 LED light bars
-
Vacuum System: ½ HP ring blower (60 CFM)
-
Electrical: 120 V / 14 A (60 Hz) | 240 V / 7 A (50/60 Hz)
-
Plug Type: NEMA 5-20P (120 V) or NEMA 6-15P (240 V)
-
Dimensions (Lid Closed): 66.2″ × 53.6″ × 44.5″
-
Dimensions (Lid Open): 66.2″ × 53.6″ × 69″
-
Weight: 346 lb (157 kg)
-
Shipping Weight: 570 lb (259 kg) w/ Dri-Vault
Optional Accessories
-
Vastex Dri-Vault Drying Cabinet with heated air circulation
-
Locking casters for mobility
-
International power cords available
-
LED retrofit kits for fluorescent unit upgrades
