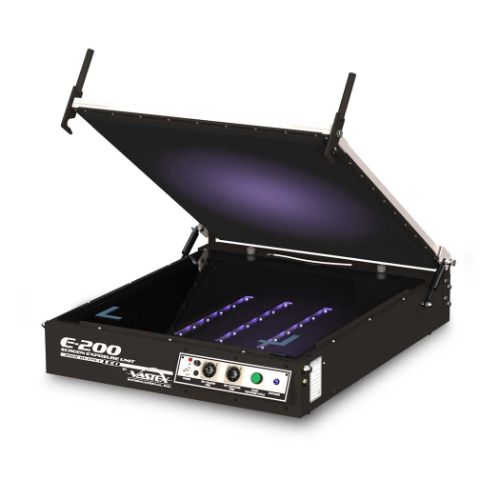

The Vastex E-200 2128 LED Exposure Unit offers professional-quality exposures in a compact footprint, ideal for small-to-mid-size screen printers and schools. Equipped with three high-output 18″ LED light bars, it exposes screens up to 15 times faster than fluorescent bulbs while consuming only 20 % of the power used by metal-halide units.
The oil-less vacuum pump delivers consistent, tight screen-to-film contact for exceptional detail reproduction up to 85 LPI. A simple one-touch angled control panel manages both vacuum and exposure cycles, providing reliable and repeatable results every time.
Designed for versatility, the E-200 can sit on a tabletop or mount securely on optional Vastex Dri-Cab or Dri-Vault Screen Drying Cabinets, the S1-27 stand, or utility cart—making it a flexible fit for any darkroom layout.
Why Choose the Vastex E-200 2128?
Compact and efficient, the Vastex E-200 2128 is ideal for printers who need professional-grade exposures in limited space. It delivers the speed and precision of larger units without sacrificing quality—making it a smart investment for growing shops and educational programs.
Explore more Vastex Exposure Units or see our full range of Screen Printing Equipment.
Download the Brochure
Manual
Key Features
-
Fast LED Exposure Technology – Exposes screens up to 15× faster than fluorescent units.
-
High Resolution – Produces fine detail and halftones up to 85 LPI.
-
Vacuum Hold-Down System – Oil-less pump ensures tight film contact (1/16 HP, 24 Hg max).
-
Energy Efficient – Operates at only 20 % of the power of metal halide units.
-
User-Friendly Controls – One-touch angled control panel for precise timing of lights and vacuum.
-
Durable LED Light Pack – 50,000 – 100,000 hour bulb life reduces maintenance costs.
-
Compact Design – Mount on a drying cabinet or utility cart to save space.
-
Works with All Emulsions – Compatible with plastisol, water-based, and solvent-based inks.
-
Warranty – 2-year coverage on manufacturing defects; 5-year LED light warranty (excludes rubber blanket).
Specifications
-
Max Screen Size: 21″ × 28″ (53 × 71 cm)
-
Light Source: (3) 18″ VLB-15 LED light bars
-
Electrical: 120 V / 60 Hz / 3.5 A (NEMA 5-15P) or 240 V / 50-60 Hz / 2 A (NEMA 6-15P)
-
Vacuum Pump: Oil-less diaphragm 1/16 HP, 24 Hg max
-
Dimensions (Closed): 35.75″ D × 34.75″ W × 14″ H
-
Dimensions (Open): 35.75″ D × 34.75″ W × 28″ H
-
Bulb Life: 50,000 – 100,000 hours
Optional Accessories
-
Dri-Vault Screen Drying Cabinet with heated air circulation
-
Dri-Cab Screen Drying Cabinet with air circulation
-
S1-27 Stand with casters
-
High-Strength Utility Cart
-
International Power Cords
