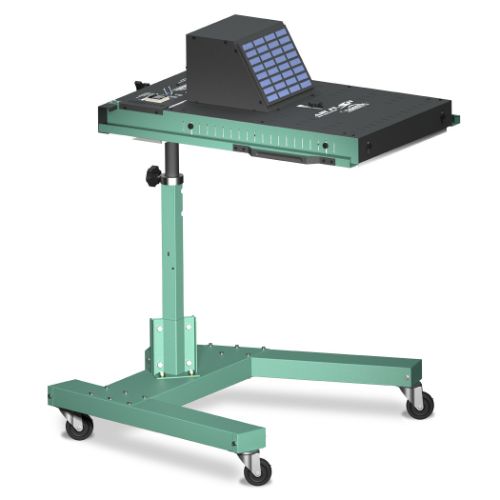

The Vastex AirFlash 18x24 Flash Cure Unit is engineered for printers working with both plastisol and water-based inks, as well as heat-sensitive fabrics. By combining infrared heating with an adjustable forced air system, this unit accelerates ink curing while keeping garments cool and protected.
Featuring a powerful blower with filtered air intake, the AirFlash delivers clean, even airflow across the platen for consistent results. The system’s digital temperature controls allow fine adjustment from zero to 100% for repeatable performance, while diagnostic lights simplify monitoring during production.
Built with Vastex’s signature close coil density infrared heater, heavy-duty frame, and air-cooled outer skin, this flash cure unit offers long-term reliability. With adjustable height, heat shield, and head rotation, the AirFlash 18x24 gives screen printers the flexibility needed to achieve professional results quickly and efficiently.
Browse all Screen Printing Flash Units
Download the Brochure
Manual
Electric: 240V / 4300W / 19A / NEMA L6-30P
Unit Warm-Up Time: 6-10 min.
Blower: 140 CFM
- Adjustable head height
- Diagnostic pilot lights
- Heavy duty side handles and locking casters
- Anti-rust treatment on powder coated all steel construction
- Outer skin and side handles are cooled for operator safety by an
adjustable air diverter system
- Depth-adjustable heater shields on three sides of the enclosure maintain edge-to-edge temperature uniformity of the heated area
- Select air only, full heat and air, or modulate air velocity and heat high-low
- Works great with plastisol, water base, discharge and delicate garments and more
- Large filtered air intake delivers clean air to heater and your garments
- Flash garments in as little as 4 seconds
- 5 Year Heater Warranty
- 2 Year Bumper to Bumper Warranty
Optional: AutoFlash automatic head swing upgrade
