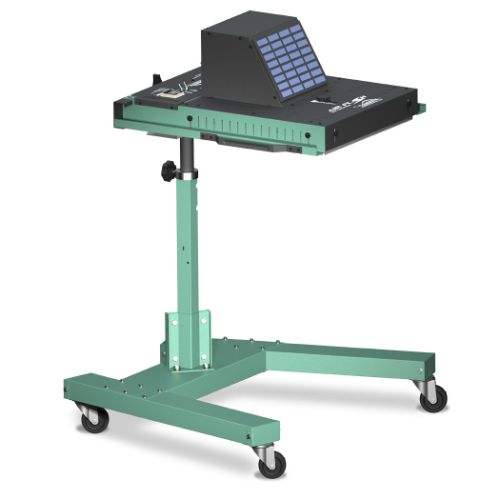

The Vastex AirFlash HO Flash Cure Unit 18" x 18" combines infrared heat with adjustable forced air for a versatile screen printing flash curing system. A 140 CFM blower draws air through an oversized filtered intake, directs it through an air diverter, and distributes it evenly across the entire heater face. Both heat and airflow are adjustable.
Digital percentage control provides repeatable adjustments from 0–100%. The AirFlash can operate with air only, full heat and air, or with modulated air velocity and heat. An adjustable heat shield helps maintain heater surface consistency, while the filtered air intake delivers clean air to the heater.
The AirFlash also provides adjustment for heat, air speed, heat shield, height, and level and features an air-cooled outer skin and heavy-duty side handles. Its 18" x 18" heater delivers 3,500 watts at 240V.
For screen printers looking to add forced-air flash curing capabilities to their screen printing equipment, the Vastex AirFlash HO provides adjustable heat and airflow in an 18" x 18" configuration.
📌 Also available in 18x24 size for larger print areas.
View all screen printing flash cure units.
Download the Brochure
Manual
Electric: 240V / 3500W / 19A / NEMA 6-20P
Unit Warm-Up Time: 6-10 min.
Blower: 140 CFM
- Adjustable head height
- Diagnostic pilot lights
- Heavy duty side handles and locking casters
- Anti-rust treatment on powder coated all steel construction
- Outer skin and side handles are cooled for operator safety by an
adjustable air diverter system
- Depth-adjustable heater shields on three sides of the enclosure maintain edge-to-edge temperature uniformity of the heated area
- Select air only, full heat and air, or modulate air velocity and heat high-low
- Works great with plastisol, water base, discharge and delicate garments and more
- Large filtered air intake delivers clean air to heater and your garments
- Flash garments in as little as 4 seconds
- 5 Year Heater Warranty
Optional: AutoFlash automatic head swing upgrade
