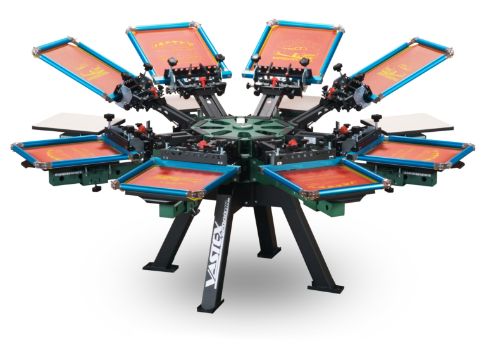

The Vastex V2000HD Series
of heavy-duty manual screen printing presses offers the screen printing professional a range of advanced capabilities that decrease set-up time, improve registration accuracy and increase productivity.
The V2000HD heavy duty print head allows the industry's fastest set-up and micro-registration, and accepts clamp-on DiGiT athletic numbering jigs and side-clamp accessories in 20 seconds.
V2000HD screen printing presses are offered
in models
from 1 station/1 color to 10 station/10 color in increments of
one station and/or one color. Fully expandable, they allow growing shops
to start small and add stations and print heads to boost output or
achieve special effects. See all Vastex screen printing presses.
Download the Brochure
Manual
- 100% wrench-free micro adjustments
- Never warp steel pallets with rubber tops
and the new corner clamp pallet arm
- Micro-registration with wrench free controls
and zero backlash
- Embedded registration bearings (close to the screen, stays clear of spray tack)
- Prints all heads down
- 6 way screen leveling
- Accurate multicolor registration
- Gas lifters with 16 position variable lift strength
- 12" wide steel rear screen clamps joined by a steel clamp bar
for off center clamping 2.75" precision ground center shaft
- 3" square steel rotor arm with ruler indicator
- Elevated Pallets — no need to stretch shirts over the arm
(also compatible with quick stretch jacket attachment)
- Zero backlash bearings on screen arm pivot
- Adjustable micro clamp levers
- Upgrade at any time to 10 station/10 color rotary floor press
- 2 Year Limited Warranty
