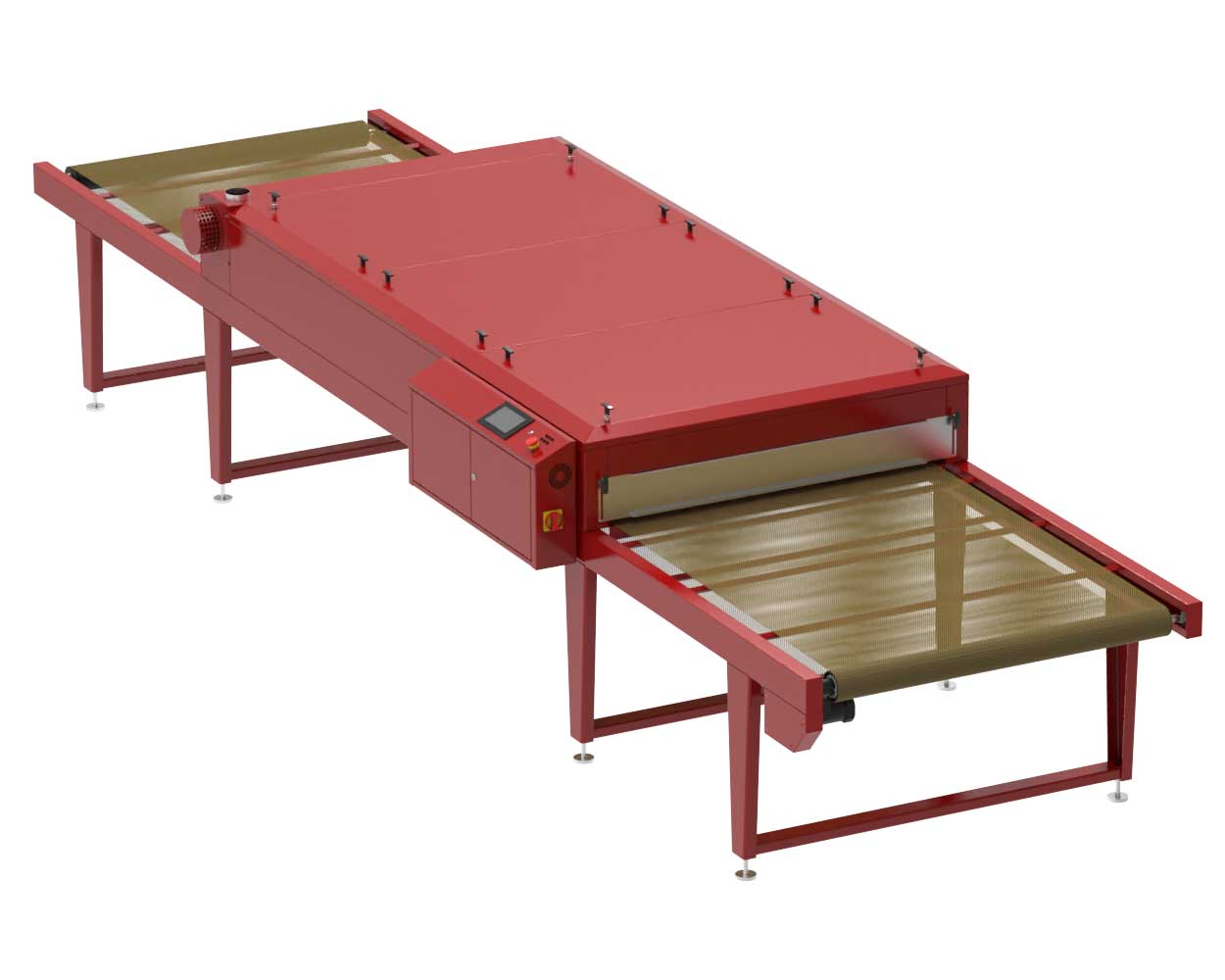

The Anatol Solutions 36" x 19.5' Electric Dryer SED-3610-23400 is a larger-capacity electric conveyor dryer built for shops that need longer dwell time, wider belt space, and stronger production output. Its 36" belt width and 9'5" heat chamber make it a strong option for printers curing higher volumes or working with more demanding ink systems.
This model features a 36" belt, 9'6" heat chamber, 19'5" overall length, 36 ceramic heating elements, and 23,400 watts. It also includes 5' infeed and outfeed lengths, digital controls, programmable temperature control, automatic startup and cool-down, reversible belt direction, and double-wall insulated construction for efficient operation.
Shop the complete selection of Conveyor Dryers.
Features
-
36" belt width
- 9' 6" heat chamber
- 19' 6" overall length
-
23,400 watts
-
36 ceramic heating elements
- Digital control panel
- Programmable temperature controller
- Automatic startup and cool-down mode
- Reversible belt direction
- Double-wall insulated construction
- Heavy-duty conveyor rollers
-
PTFE-coated fiberglass belt
- Adjustable heat panels
- Heavy-duty multi-section construction
- Air-cooled control cabinet
- Work schedule mode
- Real-time energy monitoring
- Belt Width - 36"
- Heat Chamber - 9'6"
- Overall Length - 19'6"
- Electric: 3Ph, 230V, 23,600W, 66A
