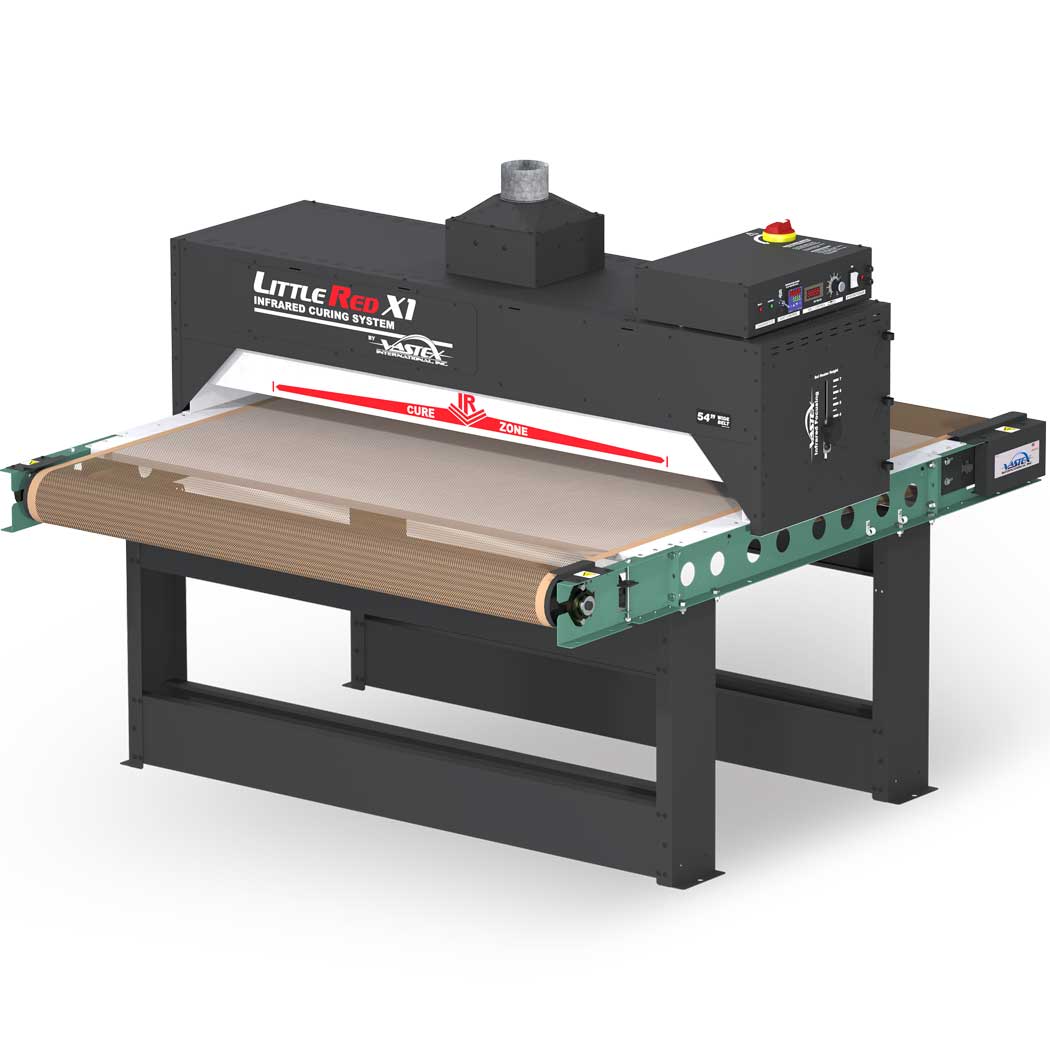

The Vastex LittleRed X1-54 Conveyor Dryer is a powerful, mid-level infrared dryer built for growing screen printing shops that need higher throughput without jumping to industrial equipment. With a 54" wide belt and a 48" (122 cm) infrared heater, this dryer delivers fast, even curing for plastisol, water-based, discharge, and DTF adhesive prints.
The X1-54 features Vastex’s signature high-density, medium-wave IR panels, engineered for maximum curing speed and edge-to-edge consistency. A digital PID temperature controller (accurate to ±1°F) and DC belt speed control with digital readout allow precise setup for any ink type. The powered exhaust efficiently removes moisture, fumes, and heat, keeping chamber temperatures consistent during long production runs.
The X1-54 can cure
- 260+ plastisol prints/hr @ 25 seconds
- 90+ water-based/discharge prints/hr @ 70 seconds
Built on Vastex’s heavy-duty “X-Series” tracking system, the dryer includes a durable Teflon-coated fiberglass belt, adjustable heater clearance (2"–7"), and a 5-year heater warranty for long-term reliability. The modular design allows you to expand production later by adding additional chambers or conveyor extensions—giving you room to grow without replacing your dryer.
Whether you're curing high-volume contract jobs or tackling diverse ink systems, the LittleRed X1-54 gives you premium performance, precise control, and unmatched durability in its class.
Looking for more options? Explore our full selection of Screen Printing Conveyor Dryers and Vastex dryer systems to find the best fit for your shop.
Download the Brochure
Manual
Key Features
High Output Performance
- Cures 260+ plastisol shirts/hr
- Cures 90+ water-based or discharge prints/hr
(Production rates based on Vastex specs
Large 54" Belt & 48" Infrared Heater
- Accommodates oversized prints and multiple garments per row
Digital PID Temperature Control
- Accurate to ±1°F for consistent curing every time
Medium-Wavelength Infrared Heat
- Closely spaced IR coils eliminate cold spots and under-curing
Powered Exhaust System
- Removes moisture and fumes; stabilizes chamber heat
Heavy-Duty Belt Tracking System
- Vastex “X-Series” tracking with low-friction belt aligner
- Teflon-coated fiberglass conveyor belt
Adjustable Heater Clearance
- 2"–7" adjustable height for different substrates and specialty items
Expandable Design
- Add chambers or belt extensions as production needs grow
Long Warranty Protection
- 5-year heater warranty
- 2-year defect warranty
- Belt Width: 54" (137 cm)
-
Heater Width: 48" (122 cm)
-
Conveyor Length: 66" (168 cm)
-
Chamber Length: 18" (46 cm)
-
Exhaust: 300 CFM (8.5 CMM)
-
Total Wattage: 5,200W @ 240V
-
Max Heater Temperature: 0–850°F (240V)
-
Time in Tunnel Range: 00:17–01:46
-
Overall Dimensions: 66"L × 65"W × 48"H
