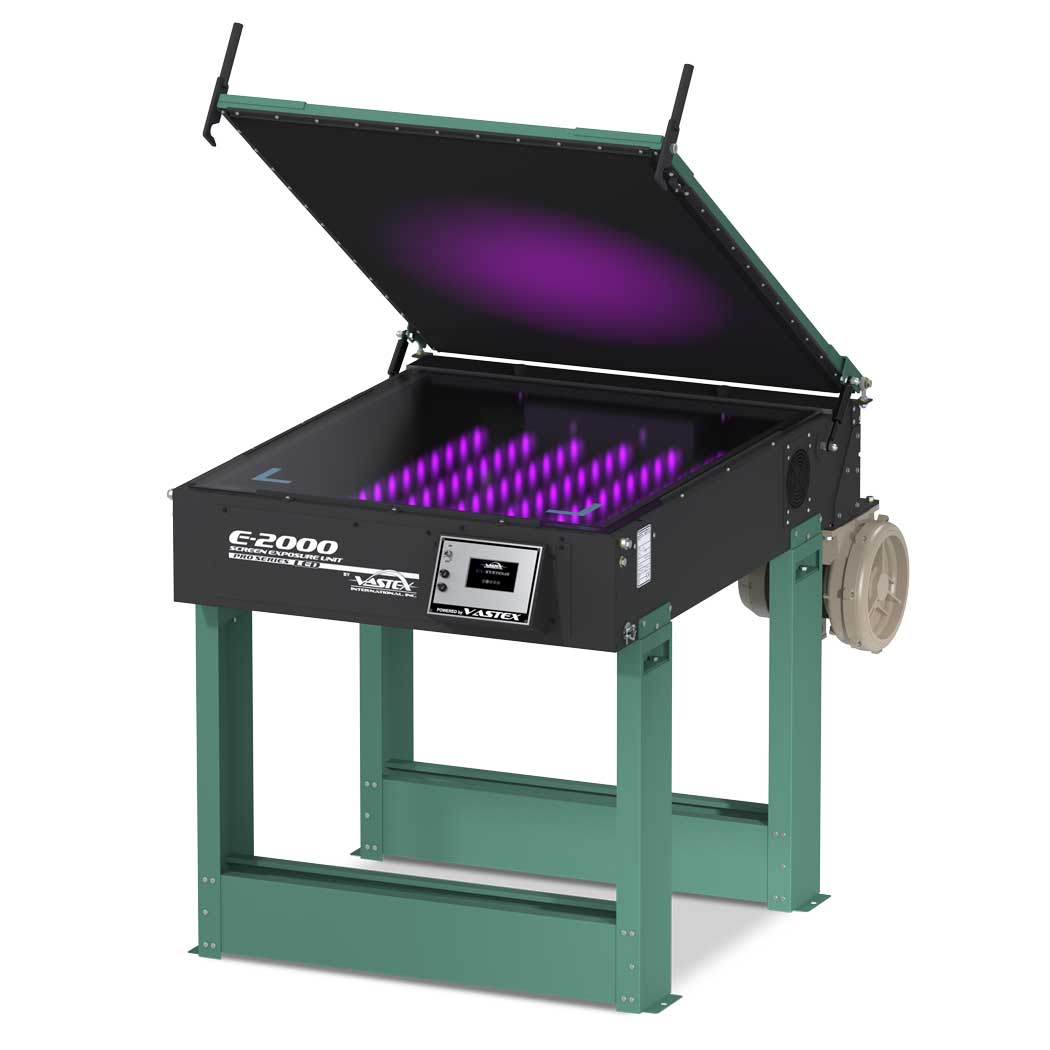

The Vastex E-2000 2536 LED Exposure Unit offers professional printers an ultra-fast, high-resolution exposure system designed for maximum efficiency and long-term reliability. Powered by six 30″ high-output LED light bars, this unit delivers exposure speeds comparable to metal halide systems while operating at just 20% of their energy consumption.
The E-2000’s advanced vacuum system provides tight, uniform screen-to-film contact in 4–6 seconds, ensuring sharp halftones and precise edge definition—even on complex graphics. It easily handles screens up to 25″ x 36″, making it an ideal choice for most textile and graphic screen applications.
The intuitive LCD touchscreen controller allows you to store up to 10 preset exposure times for different emulsions, mesh counts, and film densities. Built for production shops, the durable, compact design can be mounted directly onto a Vastex Dri-Vault Screen Drying Cabinet, maximizing workspace efficiency.
Why Choose the Vastex E-2000 2536?
The Vastex E-2000 is trusted by screen printers worldwide for its speed, precision, and efficiency. Designed for production environments, it minimizes exposure times while maximizing print consistency—all with low power use and minimal maintenance.
Explore more Vastex Exposure Units or view all Screen Printing Equipment.
Key Features
-
Ultra-Fast LED Exposure – Exposes screens up to 10–15× faster than fluorescent units and on par with metal halide systems.
-
High-Resolution Imaging – Produces crisp detail and halftones up to 85 LPI.
-
Powerful Vacuum System – Achieves full screen-to-film contact in 4–6 seconds for consistent results.
-
Energy Efficient – Operates at just 20% of the power draw of metal halide exposure units.
-
Touchscreen Control Panel – LCD interface with 10 programmable exposure presets.
-
Versatile Design – Works with all emulsion types and inks, including plastisol, water-based, and solvent-based.
-
Durable Construction – ¼ HP vacuum pump, ¼″ tempered glass, sturdy frame, and long-life LED array.
-
Mounting Compatibility – Fits securely on Vastex Dri-Vault drying cabinets for compact shop setups.
-
Long LED Life – Bulbs rated for 50,000–100,000 hours of operation.
-
Warranty – 2-year manufacturer warranty; 5-year LED warranty (excluding rubber blanket).
Specifications
-
Maximum Screen Size: 25″ × 36″ (63 × 91 cm)
-
Image Area: 24″ × 36″
-
Vacuum Pump: Oil-less diaphragm, ¼ HP, 23 Hg Max
-
Electrical: 120 V, 60 Hz, 11 A/240V 50/60Hz, 5A
-
Plug Type: NEMA 5-15P
-
Dimensions (Closed): 53.2″ D × 39.2″ W × 44.5″ H
-
Dimensions (Open): 53.2″ D ×39.2″ W × 69″ H
Optional Upgrades
-
Dri-Vault Screen Drying Cabinet – Mount directly for a space-saving darkroom setup.
-
Locking Casters – Improve mobility in small shops.
-
International Power Cords – Available for global installations.
-
LED Retrofit Kit – Convert fluorescent units to LED for faster, more consistent exposures.
