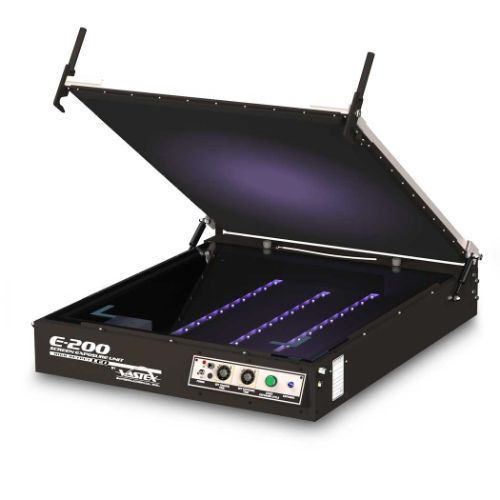

The Vastex E-200 2331 LED Exposure Unit delivers professional-grade performance for shops that need speed, consistency, and compact design. Equipped with four 30″ LED light bars, it exposes screens up to 15 times faster than fluorescent units while maintaining sharp halftones and crisp edge definition up to 85 LPI.
Its 1∕16 HP oil-less diaphragm vacuum pump achieves uniform screen-to-film contact at 24 Hg max, ensuring perfectly exposed stencils with every use. The intuitive one-touch control panel manages both the vacuum and exposure cycle simultaneously, allowing effortless operation and repeatable accuracy.
Built to last, the E-200 2331 offers the energy efficiency of LED technology—operating at only 20 percent of the power used by metal-halide systems. The unit can be used on a tabletop or mounted to optional Vastex Dri-Vault or Dri-Cab Screen Drying Cabinets, saving space while creating an efficient darkroom layout.
Why Choose the Vastex E-200 2331?
Built for reliability and detail-critical exposures, the E-200 2331 combines production-level performance with a small-shop footprint. Its balanced mix of power, precision, and LED efficiency makes it a favorite among professional printers upgrading from fluorescent systems.
Explore more Vastex Exposure Units or view all Screen Printing Equipment.
Download the Brochure
Manual
Key Features
-
Fast LED Exposure System – Exposes screens 10–15 × faster than fluorescent bulbs.
-
High-Resolution Output – Produces fine halftones and intricate graphics up to 85 LPI.
-
Vacuum Hold-Down System – 1∕16 HP pump (24 Hg max) ensures tight screen-to-film contact.
-
Energy Efficient – Consumes 80 % less power than metal halide lamps.
-
Simple One-Touch Operation – Angled control panel for easy use and consistent timing.
-
Durable LED Array – 50 000 – 100 000 hour bulb life minimizes maintenance costs.
-
Compact Design – Mount on a drying cabinet or stand to save workspace.
-
Universal Compatibility – Works with all emulsions and inks (plastisol, water-based, solvent).
-
Warranty – 2-year manufacturer’s defects coverage and 5-year LED warranty (excludes rubber blanket).
Specifications
-
Maximum Screen Size: 23″ × 31″ (60 × 80 cm)
-
Image Area: 16″ × 33″ (40 × 83 cm)
-
Light Source: (4) 30″ VLB-30 LED light bars
-
Vacuum Pump: Oil-less diaphragm 1∕16 HP – 24 Hg max
-
Electrical: 120 V / 60 Hz / 3.5 A (NEMA 5-15P) or 240 V / 50-60 Hz / 2 A (NEMA 6-15P
-
Dimensions (Lid Closed): 43″ × 36.3″ × 14.1″ (109.2 × 92.2 × 35.8 cm)
-
Dimensions (Lid Open): 43″ × 36.3″ × 35.6″ (109.2 × 92.2 × 90.4 cm)
-
Bulb Life: 50 000 – 100 000 hours
Optional Accessories
-
Dri-Vault Screen Drying Cabinet with heated air circulation
-
Dri-Cab Screen Drying Cabinet with air circulation
-
S1-27 Stand with casters
-
High-strength utility cart
-
International power cords
