Four models available, with a maximum print area of 15" x 26", 25" x 38", 30" x 41" or 32”x46”

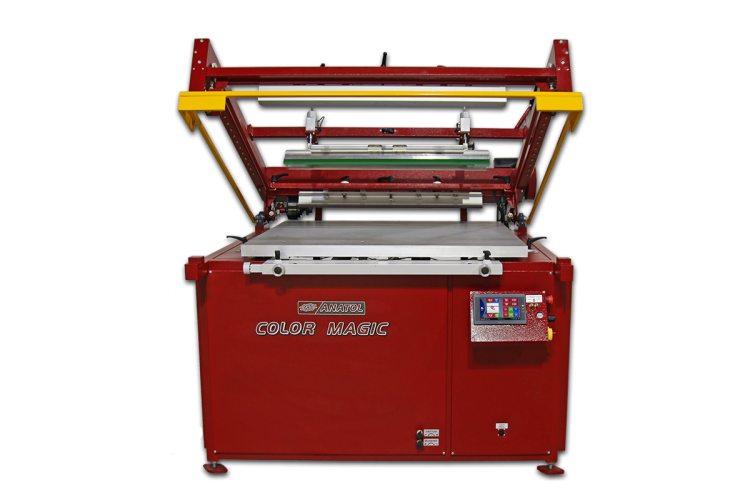

The Color Magic flatbed graphic press is an affordable, single-color press designed for printers ready to take on signage, posters, banners, and other large products. Capable of using both water based and plastisol inks, the Color Magic can print on paper, glass, metal, vinyl, plastics, and just about any other flat stock. The Color Magic offers an adjustable vacuum that guarantees the substrate will lie flat throughout the printing process. Fully programmable, the Color Magic can store job settings for multiple projects, including peel ratio, dwell time, start, and duration times. The servo-driven motor ensures a smooth print job, giving you great images in no time. The Color Magic is available in four sizes: 15" x 26", 25" x 38", 30" x 41" and 32”x46”. Add a new dimension to your shop with the Color Magic flatbed press.

Single Station Flatbed Maximum Print Area Maximum Screen Size Vacuum Bed Size Machine o.d.
COLMAGGRA-1526 15" x 26"
38cm x 66cm
32" x 38" x 2.25"
81cm x 97cm x 5.7cm
40" x 46"
100cm x 116cm
41" x 50.4"
104cm x 128cm
COLMAGGRA-2538 25" x 38"
64cm x 97cm
42" x 50" x 2.25"
106cm x 127cm x 5.7cm
36" x 45.5"
91cm x 116cm
51.5" x 60.4"
131cm x 153cm
COLMAGGRA-3041 30" x 41"
76cm x 104cm
47" x 53" x 2.25"
119cm x 135cm x 5.7cm
41" x 45.5"
104cm x 116cm
51.5" x 65.4"
131cm x 166cm

Single Station Flatbed Air Consumption @ 100 PSI Electrical Requirements
COLMAGGRA-1526 3 SCFM
85 L/min
1 Phase/3 Phase, 208-230 VAC, 14 AMPS, 50-60 Hz, 2.5 KW
COLMAGGRA-2538 3 SCFM
85 L/min
1 Phase/3 Phase, 208-230 VAC, 14 AMPS, 50-60 Hz, 2.5 KW
COLMAGGRA-3041 3 SCFM
85 L/min
1 Phase/3 Phase, 208-230 VAC, 14 AMPS, 50-60 Hz, 2.5 KW

Touchscreen Controls

  • 7” touchscreen interface with Aries operating system
  • Easy access to all machine settings
  • Run saved program in auto-mode, or run in manual mode
  • Set to plastisol or waterbased ink
  • Real time display of daily and total print count
  • Set how high frame opens to reduce production time

Print Heads

  • AC electric-driven print carriage
  • Multiple print strokes (1-9) per head
  • Breaks to prevent drifting in print area
  • Independent servo motors for print carriage and head lift
  • True three-point micro-registration (front-to-back, left-to-right, and rotational movement)

Squeegee and Flood Bar

  • Calibrated independent and micro-adjustable pressure settings
  • Easy squeegee and flood bar installation and removal, with option to move or raise either to front or rear without flooding or printing
  • Screen printing squeegee and flood bar speeds can be set individually
  • Squeegee pressure regulator

Tool-less Adjustment

  • Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
  • Gauged click-type central off-contact precisely adjusts all print stations simultaneously at a range of 0”-3/8” at increments of .005”

Peel System

  • Adjustable synchronized gear-driven peel system
  • Flat-flood capability

Pallet

  • Heavy-gauge anodized aluminum vacuum-bed pallet
  • Set pins up/down to align large substrates
  • Program vacuum suck time and puff time
  • Front access for easy setup and adjustment

Construction

  • Safety bar stops press if hit, preventing serious injury
  • Servo electric motor with variable-frequency drive rated to last up to 30 years
