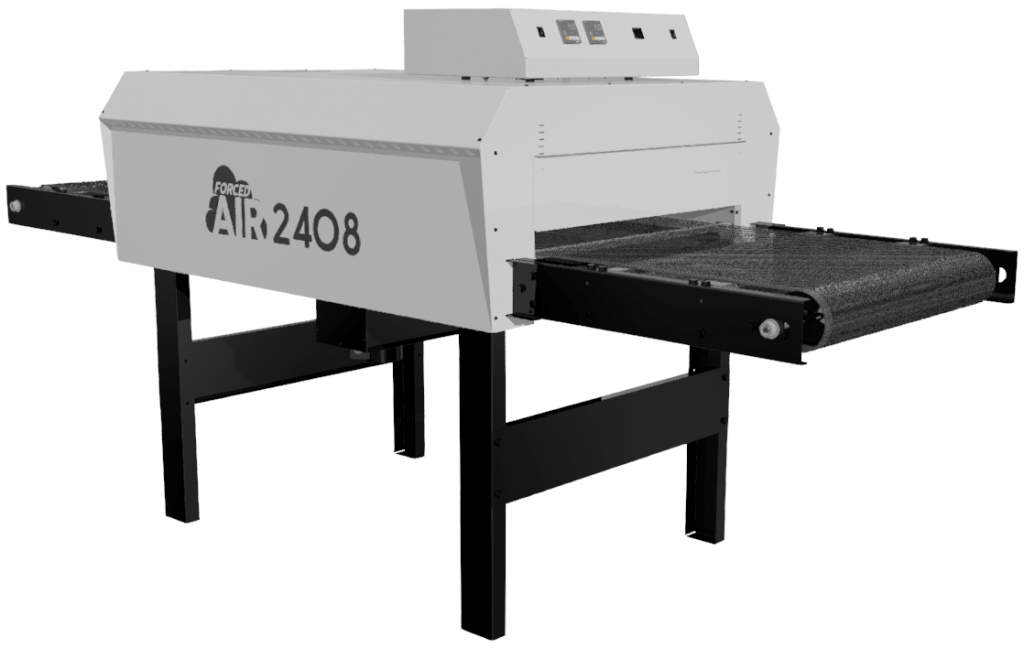

BBC Forced Air Conveyor Dryers are engineered for versatility and performance, making them the ideal solution for curing plastisol, water-based, discharge, DTG (direct-to-garment), and pretreatment inks. Featuring dual digitally controlled infrared heat zones combined with powerful forced air, these dryers ensure fast, consistent, and optimal curing for every print job.
Compact yet powerful, BBC’s dryers set the industry standard for efficiency, throughput, and productivity. At the core are advanced BBC infrared panels, designed for the most even and energy-efficient heat distribution available today.
As the only electric infrared heat manufacturer in the industry, BBC truly knows heat—bringing decades of expertise to your print shop.
Production Rates:
Plastisol: 750/hr (25 seconds)
Water-Based: 425/hr (45 seconds)
Direct-to-Garment: 150/hr (130 seconds)
Product Sheet
Electric: 1Ph/3Ph. 240 V, 7250 Watts, 30/17.5 Amps (No Plug is supplied)
Belt Width: 24"
Heater Control: Digital - 2 zones
Belt Drive Speed: 1-15 FPM
Length: 8ft
Heater Dimensions: (3) 12" x 24"
- Infrared and Convection Dryer
- Digital Temp and Dwell Time Displays

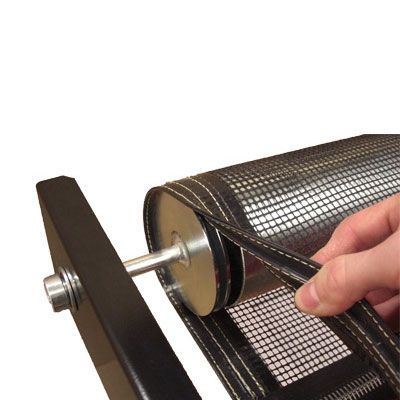

- "Hassle-Free" Belt Tracking Guide
- Process Mode Switch Alters Heat Profile (depending on you printing process)
- Controls and Chamber Body are Cool to the Touch

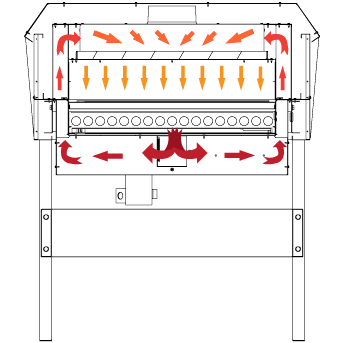

- Air Flow Starts with Warm, Dry Air from the Dryer Floor and Ends Through Holes in the Heating Elements
- 3 Year Warranty on Heaters
