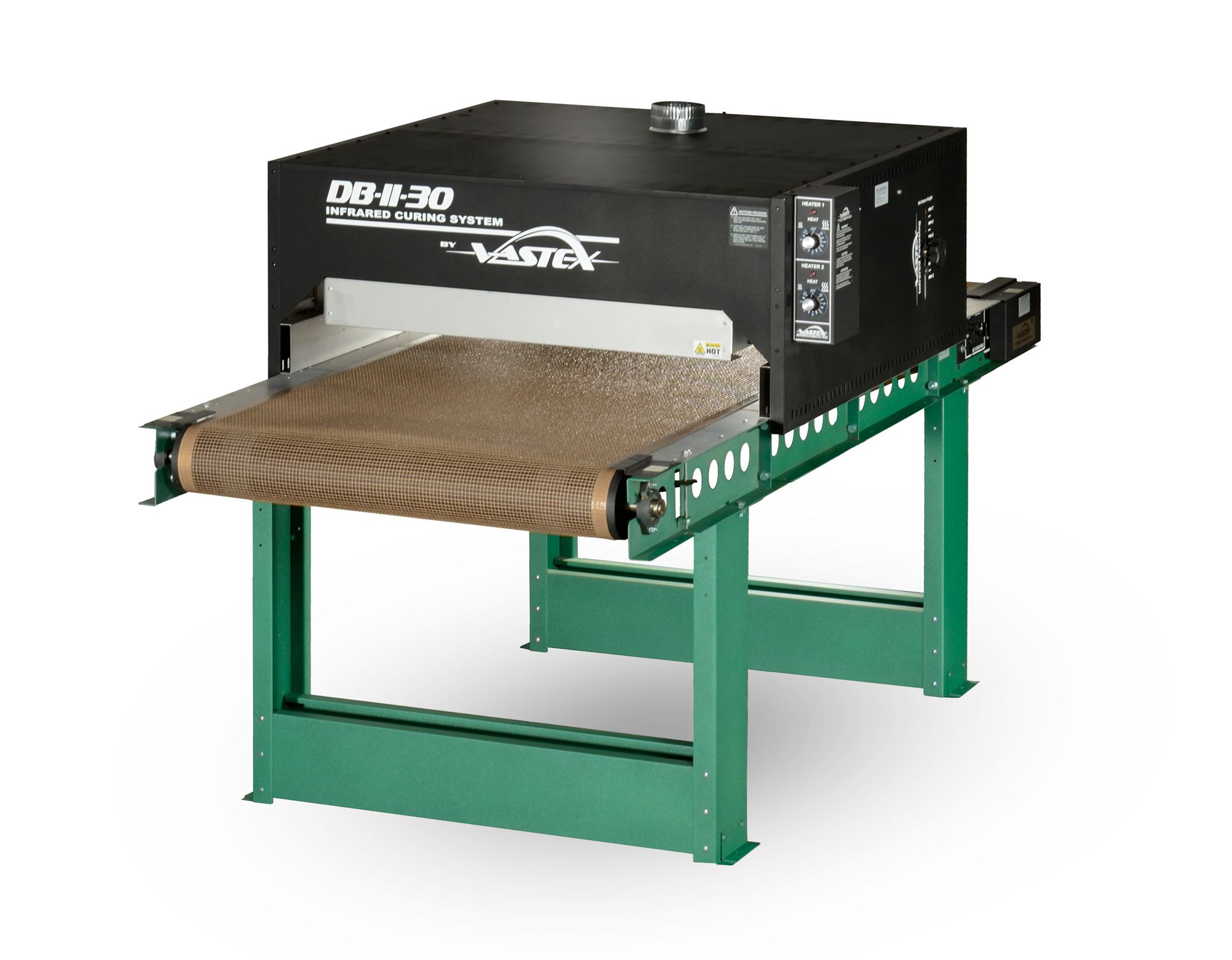

The Dri-Box II is an economical dual heater dryer for entry-level shops that require medium
production output. Capable of 250* pcs/hr/chamber and available in a 30" wide belt.
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
Electric: 240V, 1 Phase, 5200 Watts, 21.6 Amps, NEMA L6-30 (Sold Separately)
Production: 250+ Shirts/Hour* (Plastisol)
80+ Shirts/Hour* (Waterbased/Discharge)
Belt Dimensions: (L x W) 7ft x 30"
Overall Dimensions: (L x W x H) 84" x 41" x 49.5"
Chamber Length: 40"
Chamber In-Feed Width: 33.5"
Chamber In-Feed Height: 2" - 7" (adjustable)
Heater Dimensions: (2) 12" x 24"
- "X-Series" Conveyor Belt Tracking System with 30" wide PTFE coated belt
- Infrared Focusing System: 2" - 7" belt-to-heater clearance, adjustable separately on each side for each heater
- DC belt speed control
- 3 Year Defect Warranty
- 15 Year Heater Warranty
Optional:
- Additional Chamber (2) 2600W / 240V heaters w/ separate hi-low controls
- Belt Extensions (18" or 36")
- Scrub Air (forced hot air) — ideal for delicate materials
(Additional Electric: 120V or 240V, 1A - with grounded plug) - Wheel set with locking casters for easy mobility
- Hat Support Rail
Call
(800) 621-4173 for more information regarding additional options. Such
as the exhaust hood, low friction belt aligner (recommended for longer conveyor belts), and heavy duty belt motor (also recommended for longer conveyor belts).
*Rated Shirts/hr are approximations and are based on certain conditions including humidity, image size, substrate material, etc.
What is the Infrared Focusing System?
Infrared emitters have an optimal distance at
which they operate most efficiently. If the emitter is too far away
energy is wasted and lost in the distance. If the emitter
is too close the substrate may come in contact with the emitter
surface. Adjusting the heater height is an absolute necessity if the
products that you print vary in height. We want to maintain an
approximate distance of 2 1/2" from heater surface to ink.
