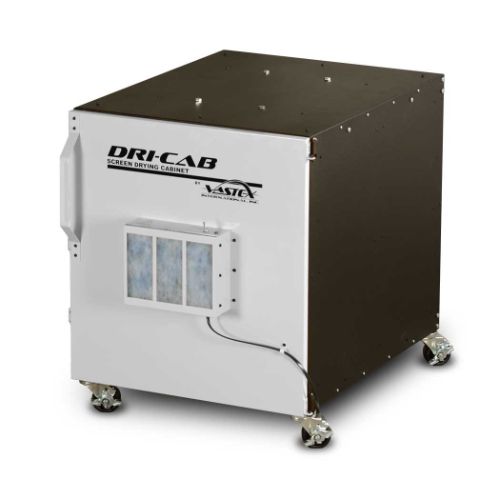

The Vastex Dri-Cab (10 Screen Capacity) is an efficient, compact drying cabinet engineered for small screen printing shops that need professional-level performance without the footprint of a full-size Dri-Vault. Designed to dry screens in as little as 60 minutes, the Dri-Cab uses filtered, pressurized airflow to deliver clean, consistent results while protecting emulsion from dust, contaminants, and premature light exposure.
Perfect for shops coating 20"×24", 21"×28", or up to 10 screens at 23"×31", this entry-level drying cabinet offers the reliability and build quality Vastex is known for—without the cost of a heated cabinet.
Built from durable materials and equipped with removable angled shelves, the Dri-Cab ensures screens dry evenly with minimal contact. Its light-tight design prevents accidental exposure, and the filtered air intake keeps dirt and lint off freshly coated screens for sharper stencils and cleaner prints.
The Dri-Cab can also serve as a mounting platform for Vastex E-100, E-1000, and E-200 Exposure Units, creating a compact, vertical production station ideal for darkrooms with limited space.
Download the Brochure
Manual
Key Features
-
Holds up to 10 screens up to 23" × 31"
-
Dries emulsion in as little as 60 minutes under optimal conditions
-
Filtered airflow system keeps dust and contaminants away from coated screens
-
Light-tight construction to protect emulsion from unintended exposure
-
Removable angled shelves provide edge-only contact for even, efficient drying
-
Powered blower delivers 91–113 CFM of free-air circulation for consistent airflow
-
Locking, sealed door ensures a controlled drying environment
-
Compact footprint—ideal for small shops
-
Mounting rails available for Vastex tabletop exposure units (E-100, E-1000, E-200)
-
Optional voltages: 120V, 200V, or 240V
-
2-year warranty on manufacturer defects
Specifications
-
Capacity: 10 screens
-
Max Screen Size: 23" × 31"
-
Airflow Blower: 91–113 CFM (free air)
-
Dimensions: 36" × 26" × 32" (W × D × H)
-
Electrical: 120V / 1A / 1PH / 60Hz (NEMA 5-15P)
-
Optional 240V and international power available
-
Construction: Durable, light-tight cabinet with replaceable air filter
